Remove/Install Tie Rod Ball Joint - AR46.40-P-0211MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

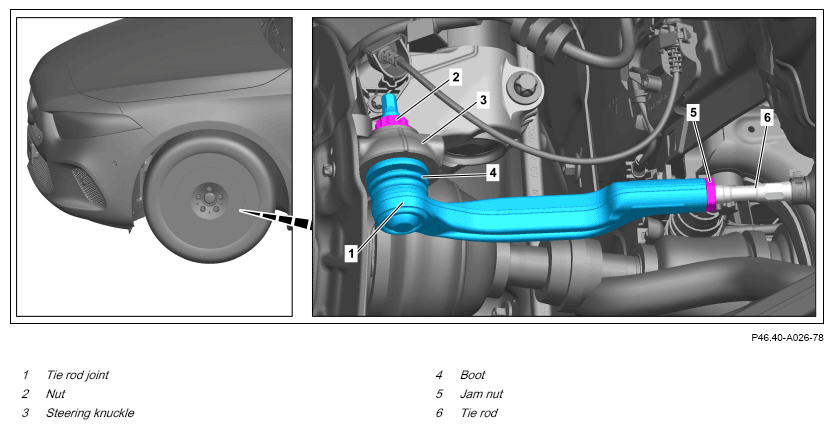

Fig 1: Tie Rod Ball Joint Components Location - Model 118 (Shown On Model 177)
G16050209Courtesy of MERCEDES-BENZ USA

Shown on model 177 on left side of vehicle

Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Remove left or right front wheel and tire assembly.   AR40.10-P-1102MFA
2 Counterhold tie rod joint (1) and release counternut (5) at tie rod (6). INSTALLATION NOTES Always counterhold tie rod (6).
The tie rod (6) will otherwise be damaged.
IMPORTANT Once released, do not turn counternut (5) on tie rod (6) any more.

    TORQUE SPECIFICATION Jam nut, tie rod *BA46.40-P-1002-01Q
3 Remove nut (2) and remove tie rod joint (1) from steering knuckle (3).   AR46.40-P-0200-02MFA
    NOTES Always counterhold the ball head when removing the nut (2) and do not use an impact wrench.
Otherwise, the ball head or steering knuckle (3) will be damaged.
NOTES Do not damage boot (4) when prying off. Otherwise, the tie rod joint (1) will need to be replaced.

    TORQUE SPECIFICATION Nut, tie rod to steering knuckle *BA46.40-P-1001-01Q
    SPECIAL TOOL Puller Fig 2
    SPECIAL TOOL Press Fig 4
    SPECIAL TOOL Repair spindle Fig 3
4 Remove tie rod joint (1) from tie rod (6).
5 Install in the reverse order.
MEASURING Measure
6 Perform wheel alignment measurement.   AR40.20-P-0200MFA
FRONT AXLE TIE ROD

Number Designation Model 118, 177, 247 Model 243
BA46.40-P-1001-01Q Nut, tie rod to steering knuckle Stage 1 Nm 90 90
Stage 2 ∠° 90 90
FRONT AXLE TIE ROD

Number Designation Model 118, 177, 247 Model 243
BA46.40-P-1002-01Q Jam nut, tie rod Nm 60 60
Fig 2: Identifying Puller (221 589 00 33 00)
G13658538Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Repair Spindle (221 589 00 33 03)
G14688759Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Press (163 589 03 43 00)
G13841867Courtesy of MERCEDES-BENZ USA
