Check And Replace Rack-And-Pinion Steering Rubber Boot - AR46.40-P-0400MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
Shown on model 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Check | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |

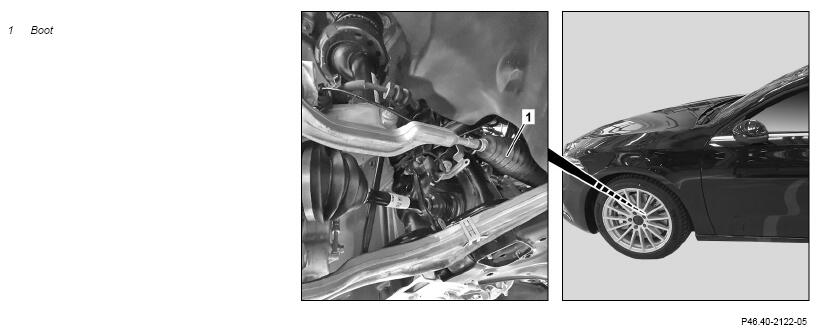

| 2 | Stretch boot (1) by turning steering to maximum steering angle and check for damage (cracks, holes, chafe marks and indentations). | Do not check the boot (1) by pressing in or around the raised bead. Otherwise damage and leakage will occur. If the boot (1) is damaged, ↓ replace boot (1). |
AR46.40-P-9998MFA |
| 3 | Lower vehicle. | AR00.60-P-1006A |
