Retrofit Carbon Look Rear Spoiler On Trunk Lid - AZ88.50-P-0010MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3 (except 118.35)
except code 830 (China version)
| Install | |||

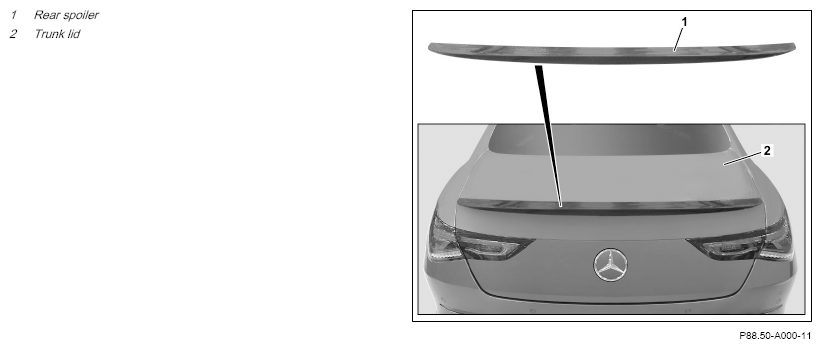

| 1 | Install rear spoiler (1) on trunk lid (2). | When pressing on, press directly on bonding surface on rear spoiler (1). The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur. |
AZ88.50-P-0010-01MFC |
| Cleaner | *BR00.45-Z-1025-04A | ||
| Update Vehicle Documentation (VeDoc) | |||
| 2 | Attach note "Rear spoiler carbon fiber look retrofitted as per AZ88.50-P-0010MFC" under field organization texts in DG 88. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see XENTRY Portal Parts information) | Parts kit for rear spoiler on trunk lid | 1 |
