Repair Flexray Wiring Harness Using Axial Solder Connectors - AR54.18-P-0102-01A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (Car)
 |
000 588 15 84 00 Heat gun |
|
WS54.00-P-0125B |
|
000 588 15 84 00 Heat gun |
|
WS54.00-P-0125B |
Model All (CAR)
REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1017-12A |
Heat-shrinkable tube 130 mm |
A 000 982 46 20 |
| BR00.45-Z-1018-12A |
Solder connector |
A 000 982 95 10 |

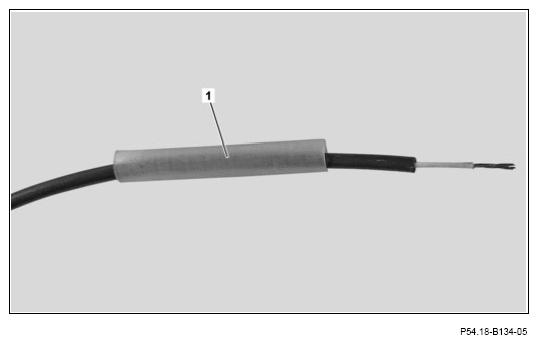

- Push corresponding heat-shrinkable tube (1) over FlexRay line.
For repairs in the interior, shorten the heat-shrinkable tube to 65 mm. For repairs in the exterior area, use the heat-shrinkable tube with a length of 130 mm.
 Courtesy of MERCEDES-BENZ USA
|

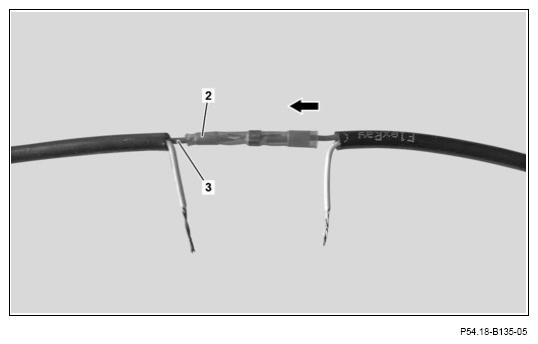

- The Slide the axial solder connector (2) in the direction of the arrow onto the electric line (3) and past the solder point.
Push on the thinner side of the Push on the thinner side of the axial solder connector (2) first.
 Courtesy of MERCEDES-BENZ USA
|
- The Using the heat gun, heat the axial solder connector (2) to 400 C
Use the welding pearl catcher in the vehicle interior.
Otherwise, damage could be caused by liquid soldering material.
Continue heating until the soldering ring dissolves and covering has thoroughly wrapped itself around the lines.
 Courtesy of MERCEDES-BENZ USA
|
- Check soldered point.
It must not be possible to see the soldering ring of the axial solder connector (2) any more. The covering must lie cleanly against the lines.
 Courtesy of MERCEDES-BENZ USA
|

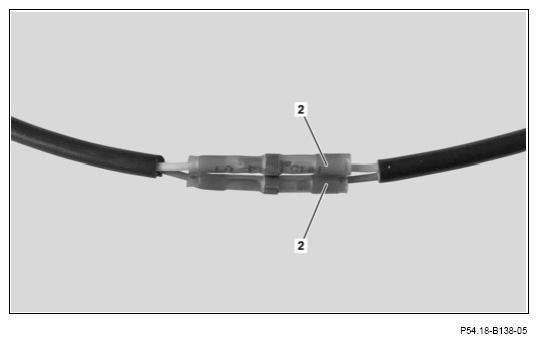

- Install the axial solder connector (2) in the same position.
Make sure that after the procedure the electrical lines are laid as closely to each other as possible.
Ensure the repair area (entire heat-shrinkable tube (1)) is not within the bending area or on the fastener.
 Courtesy of MERCEDES-BENZ USA
|

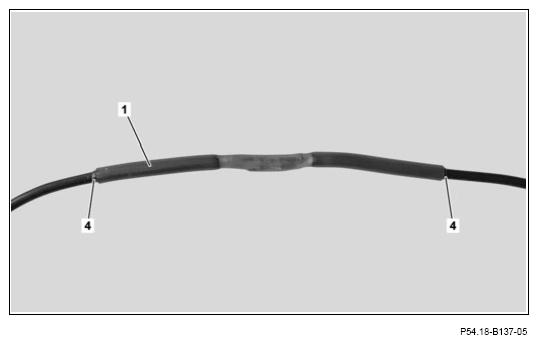

- Center the heat-shrinkable tube (1), then, using a heat gun, heat to 200°C and shrink from the inside toward the outside.
Adhesive extrusion (4) must be visible on both ends.
Observe information provided by the heat gun manufacturer, especially information regarding the exposure time.
- Wrap fabric insulation tape around the wiring harness.
 Courtesy of MERCEDES-BENZ USA
|
