Remove/Install Stationary Heater Telestart Receiver - AR83.70-P-0014MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
with code B24 (Remote control for Auxiliary heating)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |

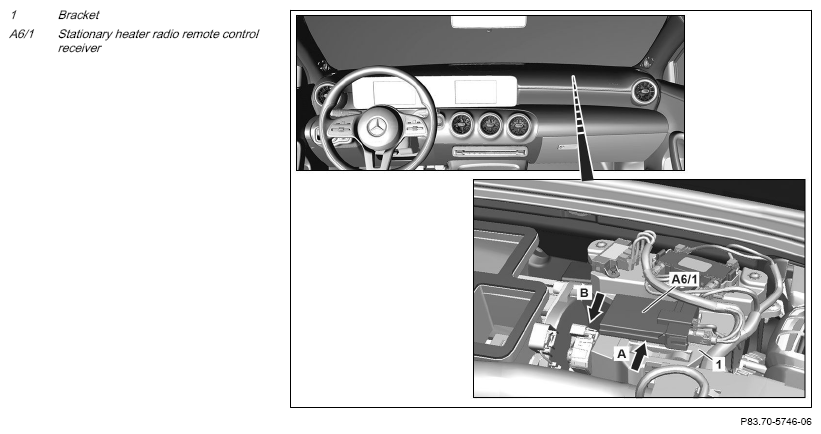

| 2 | Release stationary heater radio remote control receiver (A6/1) from bracket (1) using a suitable tool at arrow (A). | ||
| 3 | Push stationary heater radio remote control receiver (A6/1) out of bracket (1) in direction of arrow (B). | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 4 | Release and disconnect electrical connectors at stationary heater radio remote control receiver (A6/1). | ||
| 5 | Remove stationary heater radio remote control receiver (A6/1). | ||
| 6 | Install in the reverse order | ||
| 7 | Teach in stationary heater radio remote control transmitter. | If the stationary heater radio remote control receiver (A6/1) is replaced. | AR83.70-P-0018-01MFA |
