Remove/Install Front Evaporator Shutoff Valve - AR83.30-P-5510MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.353/354/653/654, 177.053/054, 247.753/754 with engine 139

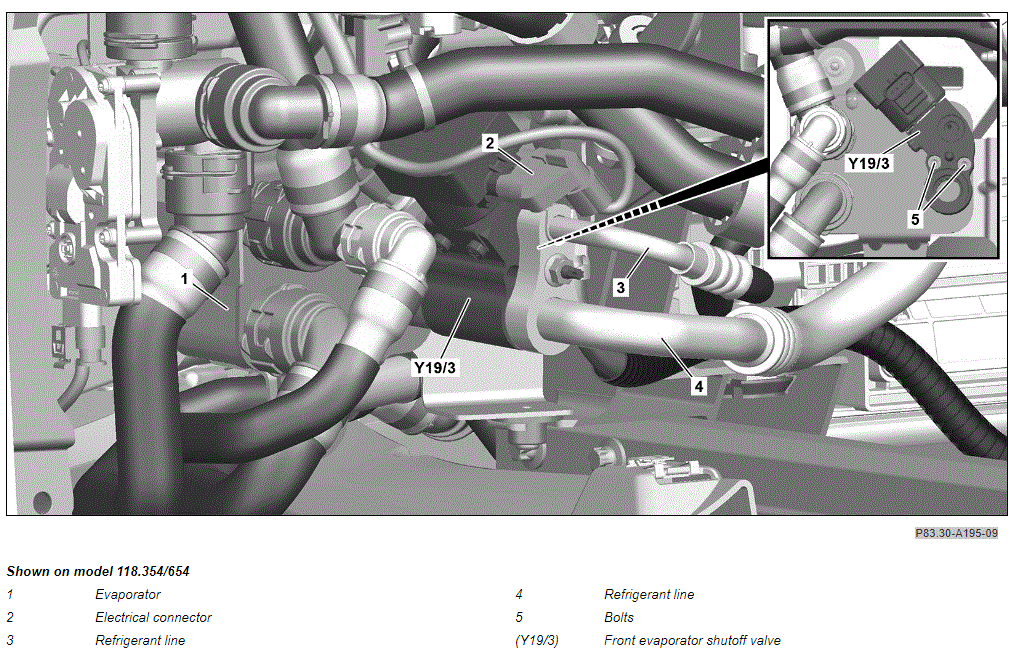

Shown on model 118.354/654
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Procedure for a damaged or leaky air conditioning system | AH83.30-P-0004-01KOA | |
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760MFA | |
| 2 | Remove left front wheel and tire assembly. | AR40.10-P-1102MFA | |
| 3 | Remove front section of left front fender liner. | AR88.10-P-1301MFA | |
| 4.1 | Remove refrigerant lines (3, 4) from front evaporator shutoff valve (Y19/3) and seal openings with suitable stop plugs. | Model 118.353/354/653/654 with engine 139 | |
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1017-01T | |||
| Fig 2 | |||
| 4.2 | Remove refrigerant lines (3, 4) from front evaporator shutoff valve (Y19/3) and seal openings with suitable stop plugs. | Model 177.053/054, 247.753/754 with engine 139 | |
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1017-01T | |||
| Fig 2 | |||
| 5 | Release and disconnect electrical connector (2). | ||
| 6 | Remove bolts (5). | *BA83.30-P-1016-01T | |
| 7.1 | Remove front evaporator shutoff valve (Y19/3) from evaporator (1) and seal openings with suitable stop plugs. | Model 118.353/354/653/654 with engine 139 | |
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| Fig 1 | |||
| Fig 2 | |||
| 7.2 | Remove front evaporator shutoff valve (Y19/3) from evaporator (1) and seal openings with suitable stop plugs. | Model 177.053/054, 247.753/754 with engine 139 | |
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| Fig 1 | |||
| Fig 2 | |||
| 8 | Install in the reverse order. | ||
AIR CONDITIONING
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA83.30-P-1016-01T | Screw, electric expansion valve to evaporator in left front wheel arch | Nm | 6 | 6 |
AIR CONDITIONING
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA83.30-P-1016-01T | Screw, electric expansion valve to evaporator in left front wheel arch | Nm | 6 |
AIR CONDITIONING
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA83.30-P-1017-01T | Nut, refrigerant lines to electric expansion valve | Nm | 12 | 12 |
AIR CONDITIONING
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA83.30-P-1017-01T | Nut, refrigerant lines to electric expansion valve | Nm |
