Remove/Install Fresh Air/Ram Air/Recirculated Air Flap Actuator Motor - AR83.10-P-2038MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove glove box. | AR68.10-P-1400MFA | |
| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove screw/bolts (3). | ||

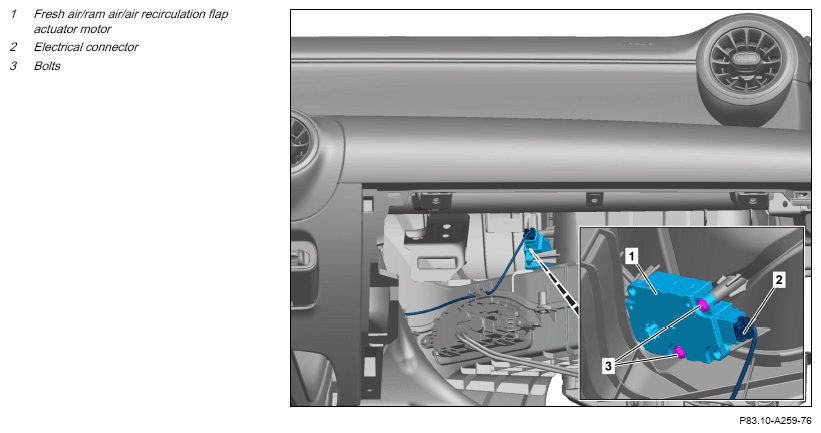

| 4 | Remove fresh air/ram air/air recirculation flap actuator motor (1). | ||
| 5 | Install in the reverse order. | ||
| Finishing activity | |||
| 6 | Connect diagnostic system teach in and normalize fresh air/ram air/air recirculation flap actuator motor (1) and clear fault memory. | ||
| AD00.00-P-2000-06MFA |
