Remove/Install Electronic Blower Regulator/Control Unit - AR83.25-P-1220MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
Shown on model 177

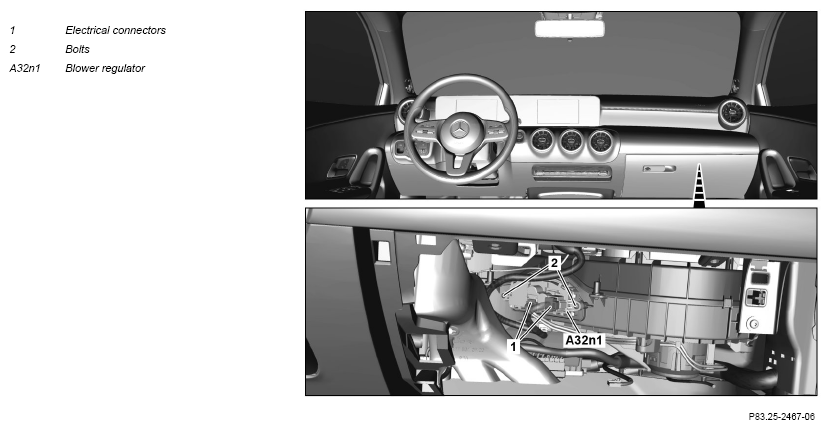

Fig 1: Electronic Blower Regulator/Control Unit Components Location - Model 118 (Shown On Model 177)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove glove box. | AR68.10-P-1400MFA | |
| 3 | Release and disconnect electrical connectors (1). | ||
| 4 | Unscrew bolts (2). | ||
| 5 | Remove blower regulator (A32n1). | ||
| 6 | Install in the reverse order. |
