Remove/Install Blower Motor - AR83.25-P-1200MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247

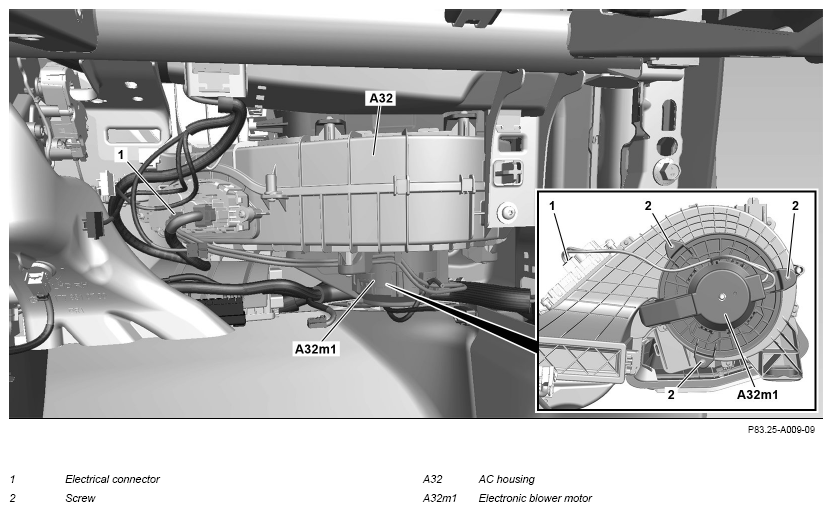

Shown on model 177
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove glove box. | AR68.10-P-1400MFA | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screws (2). | ||
| 4 | Remove electronic blower motor (A32m1) downwards out of AC housing (A32). | Otherwise an imbalance is created at the fan wheel. |
|
| 5 | Install in the reverse order. |
