Perform Cleaning Of Evaporator - AR83.30-P-5555-02MA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 118, 156, 167, 176, 177, 190, 206, 214, 217, 221, 222, 223, 230, 231, 232, 240, 242, 243, 246, 247, 254, 294
Model 164, 171, 172, 203, 204, 205, 207, 209, 210, 211, 212, 213, 216, 218, 219, 238, 253, 257, 290, 293, 296, 297
with code 581 (Automatic climate control)

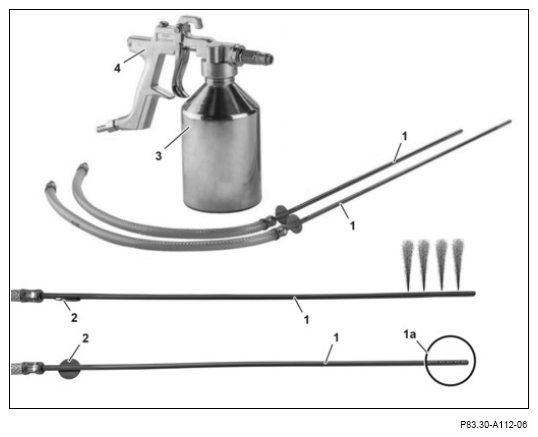

REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1081-04A | Pressure-feed spray gun with 2 cleaning probes (short and long) for A/C systems | A 000 581 00 04 |
Shown on model 213

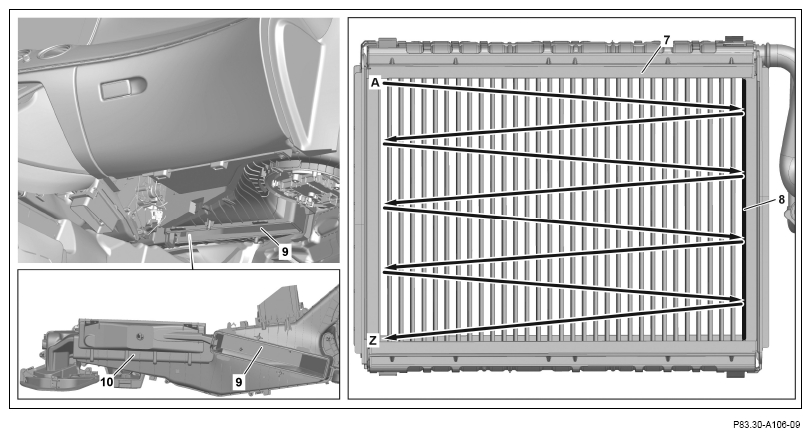

- Sensor (1) of Insert pressure-feed spray gun (4) with container (3) through the opening (9) of the activated charcoal particle filter into the evaporator housing (10).
- Put thumb on guide pulley (2).
This determines the spray direction.
The spray bores (1a) are located opposite the guide pulley (2).
- Operate pressure-feed spray gun (4), then distribute the cleaner, as shown, from (A) to (Z) through uniform movements of the probe (1) up to the end stop (8) over the entire surface of the evaporator (7).
Only the cleaner approved by Mercedes-Benz AG may be used: https://xentry.mercedes-benz.com
Use entire content of cleaner.
Observe the cleaner's exposure time.
