Disconnecting And Connecting Harness At Starter - AR15.30-P-7100-03MFG
Engine 139 in model 118, 177, 247
STARTER
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 16 |

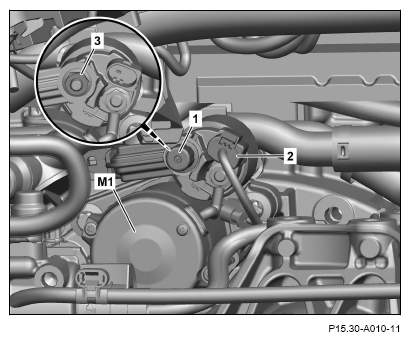

- Remove contact protection (1) of the electric line for circuit 30 from the starter (M1).
- Unscrew nut (3) of circuit 30 electric line
from starter (M1) and disconnect electric line.
- Release and disconnect circuit 50 electrical connector (2) from starter (M1).
