Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MFG

Engine 139 in model 118, 177, 247

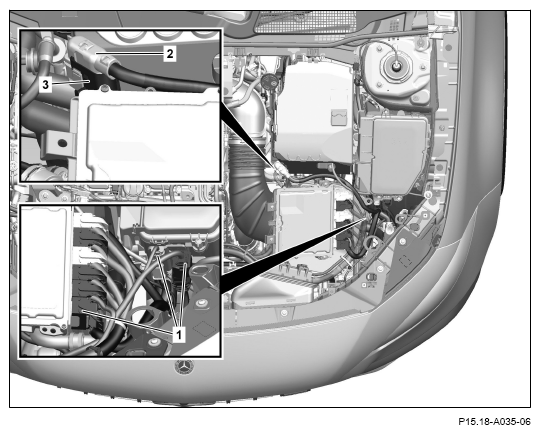

1. Release and disconnect the electrical connections (1).
2. Release and disconnect the electrical connector (2).
3. Remove electrical connector (3) from the battery housing.
4. Connect in reverse order.

   Shown on model 177

   Courtesy of MERCEDES-BENZ USA
