Remove/Install Front Radial Shaft Sealing Ring On Crankshaft - AR03.20-P-3004MFC

Engine 260 in model 118, 177, 247

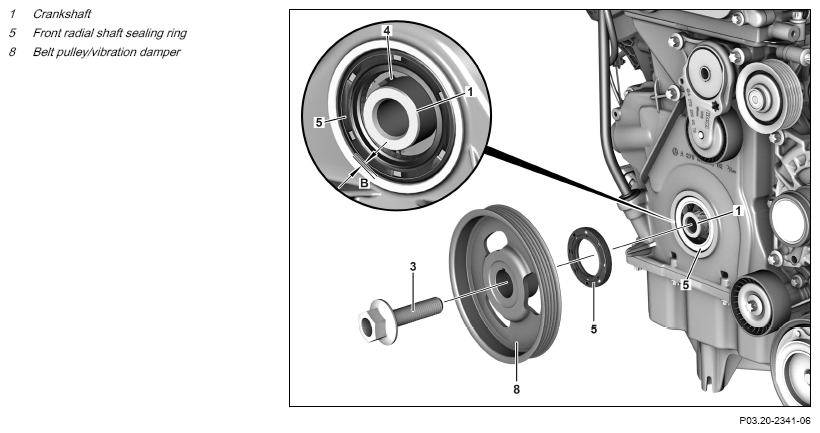

Fig 1: Front Crank Seal Components Location - Engine 260 In Model 247

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove belt pulley/vibration damper (8).		AR03.30-P-1600MFC
2	Use suitable tool to remove front radial shaft sealing ring (5) from mounting hole.		AR03.20-P-3002-01MFC
		Do not damage crankshaft (1) and mounting hole; use a clean rag as a base to press out. Leakage can occur otherwise. Install front radial shaft sealing ring (5) with drift flush in timing case cover. Repair solution in case of galling at belt pulley/vibration damper (8): Evenly hammer in front radial shaft sealing ring (5) deeper by installation depth "B" 0.7 mm. Assembly cleaner	*BR00.45-Z-1028-04A
		Drift	Fig 2
	Check
3	Check contact surface of front radial shaft sealing ring (5) at hub of belt pulley/vibration damper (8).	If score marks and galling are visible: Replace belt pulley/vibration damper (8).	AR03.30-P-1600MFC
4	Install in the reverse order.
	Check
5	Check engine oil level with instrument cluster and correct if necessary.
			AP18.00-P-1812MFA
	Risk of burn  injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Perform engine test run. While doing so, check engine for proper operation and leak tightness.

Fig 2: Identifying Drift (270 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
