Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MFI

Engine 260 in model 118, 177, 247 with transmission 724.1

Shown on model 177

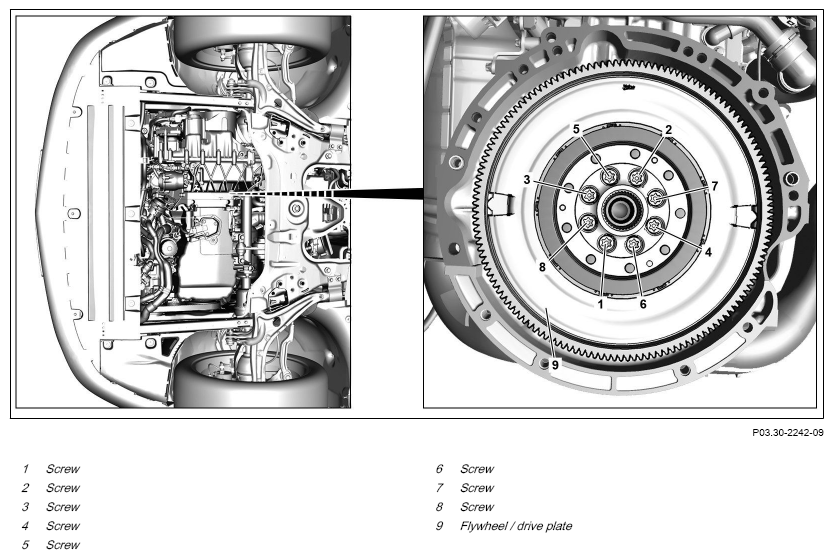

Fig 1: Flywheel/Drive Plate Components Location - Engine 260 In Model 247 With Transmission 724.1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove
1	Remove transmission.		AR27.10-P-0009MFA
2	Install retaining lock for crankshaft/starter ring gear.		AR03.30-P-5000MFC
3	Loosen screws (1 - 8).	Do not use an impact wrench or similar compressed air tool to loosen the screws (1 - 8). Otherwise, damage to the crankshaft will occur.
4	Remove screws (1 - 8) and remove flywheel/drive plate (9).
5	Check rear radial shaft sealing ring for damage.	If there are problems, ↓ Replace rear radial shaft sealing ring.	AR03.20-P-3064MFC
	Install
6	Position flywheel/drive plate (9) on crankshaft.	The dowel pin of the crankshaft determines the installation position of the flywheel/drive plate (9).
7	Tighten screws (1 - 8) slightly by hand and tighten in numerical sequence as per the illustration.	Install new screws (1 - 8). Bolt, two-mass flywheel/drive plate to crankshaft	*BA03.30-P-1003-01S
8	Remove retaining lock for crankshaft/starter ring gear.		AR03.30-P-5000MFC
9	Install transmission.		AR27.10-P-0009MFA
