Tightening Procedure For Cylinder Head Bolts - AR01.30-P-5800-01MFG
Engine 139
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
CYLINDER HEAD
| Number | Designation | Engine 139 | |||
|---|---|---|---|---|---|
| BA01.30-P-1001-01DA | Screw/bolt, cylinder head to crankcase | M12 | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 90 | |||

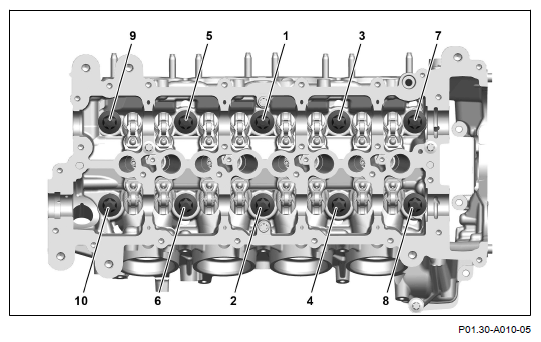

- Tighten cylinder head bolts (1 to 10) in the numerical sequence
.
