Remove/Install Exhaust System Downstream Of Catalytic Converter - AR49.10-P-7286MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES
| 21.09.2020 | Remove AMG Sound Package sensor (B28/39), added. |
Shown on model 177
Shown on model 177
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||

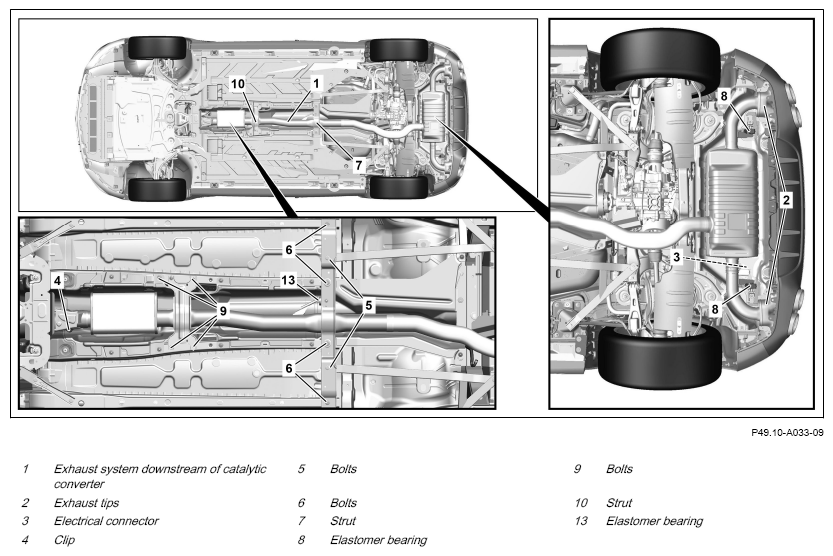

| 1 | Remove side underfloor paneling. | AR61.30-P-1001MFA | |
| 2 | Release tailpipe trims (2) on left and right from bumper and slide back. | ||
| 3 | Release and disconnect electrical connector (3) at exhaust gas flap controller (M16/57). | ||
| 4 | Remove AMG Sound Package sensor (B28/39) from exhaust system downstream of catalytic converter and place to one side with lines attached. | AR49.10-P-0012MFG | |
| 5 | Release clamp (4). | *BA49.10-P-1005-02X | |
| 6 | Remove the screws (5). | *BA61.10-P-1006-01N | |
| 7 | Unscrew bolts (6) and remove strut (7). | *BA61.10-P-1002-01N | |
| 8 | Support exhaust system downstream of catalytic converter (1). | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 9 | Detach elastomer bearings (8). | Fig 1 | |
| 10 | Remove bolts (9) and remove front strut (10). | *BA61.10-P-1001-01N | |
| 11 | Pull out exhaust system downstream of catalytic converter (1) from bracket (12) and remove. | ||
| 12 | Remove clamp (4). | ||

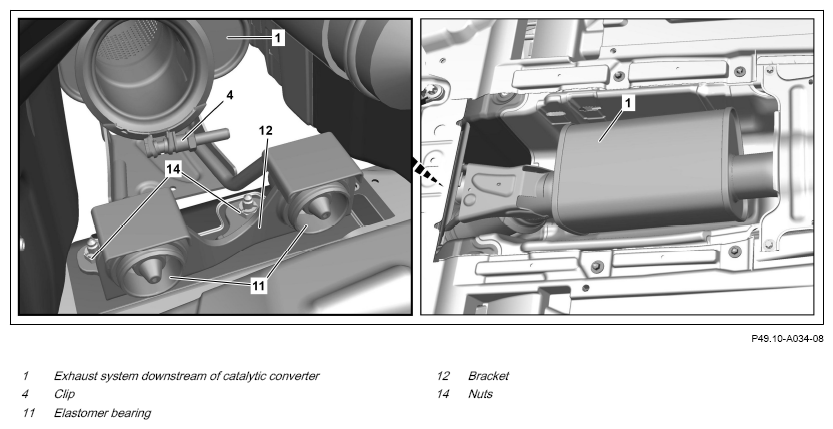

| 13 | Unscrew nuts (14) and remove bracket (12) from front axle carrier. | Wet elastomer bearings (11) with Teflon spray. Teflon spray, art. No.K007.1 |
*BR00.45-Z-1041-06A |
| *BA49.10-P-1002-02X | |||
| 14 | Remove combustion and corrosion residues. | ||
| 15 | Check elastomer bearing (8, 13) for damage and replace if necessary. | ||
| 16 | Install in the reverse order. | ||
| Check | |||
| 17 | Check installation position and clearance of exhaust system downstream of catalytic converter (1) and correct if necessary. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 18 | Perform engine test run to check exhaust system for leaks. |
EXHAUST SYSTEM
| Number | Designation | Engine 139 in model 118, 177, 247 | |
|---|---|---|---|
| BA49.10-P-1002-02X | Nut, center exhaust system holder to front axle carrier | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 139 in model 118, 177, 247 | |
|---|---|---|---|
| BA49.10-P-1005-02X | Clamp, exhaust pipe to catalytic converter | Nm | 25 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1001-01N | Screw, center cross strut (front) to frame floor assembly | M10 | Nm | 30 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1002-01N | Screw, center cross strut (rear) to frame floor assembly | M10 | Nm | 30 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1006-01N | Screw, strut to frame floor assembly | M10 | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-06A | Teflon spray, art. No.K007.1 | Carl Roth GmbH & Co KG Schoemperlenstr. 1-5 76185 Karlsruhe Germany Tel. +49 721 5606-0 Fax +49 721 5606-149 http://www.carl-roth.de |
