Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

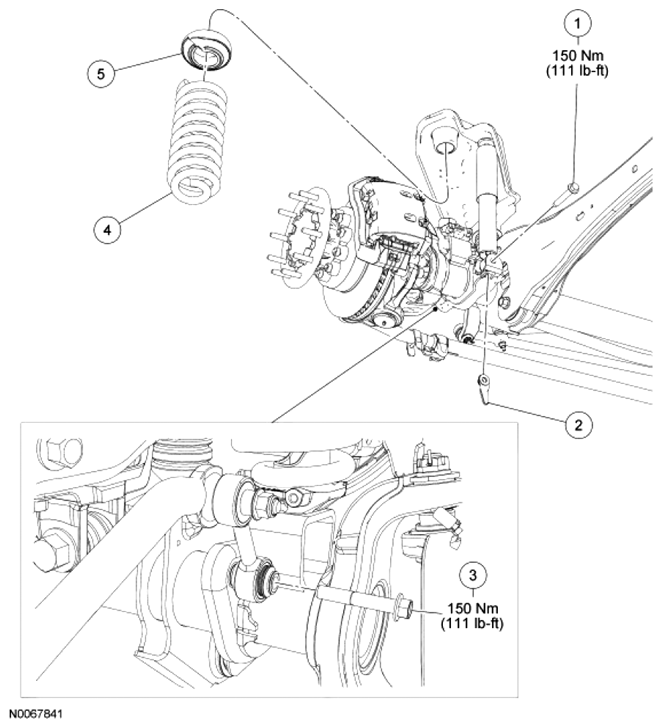

LH shown in illustration, RH similar.
Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W500765 |
Shock absorber lower bolt |
| 2 |
W701642 |
Shock absorber lower flag nut |
| 3 |
5C491 |
Stabilizer bar link lower bolt |
| 4 |
5310 |
Spring |
| 5 |
5415 |
Spring upper insulator |
