Special Tool(s)

WARNING: This page is about a different car, the 2010 Ford F550 Super Duty and 2010 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART

G06778566Courtesy of FORD MOTOR CO.
 High Lift Transmission Jack
014-00942
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the 2 screws under the shift lever boot and slide the shift boot back, unseating it from the front tab.
    Fig 1: Locating Shift Lever Boot Screw
    G06778563Courtesy of FORD MOTOR CO.
  4. Slide the upper shifter boot assembly up the shift handle to access the 2 shift handle bolts.
    • Remove the 2 shift handle bolts and lever.
      Fig 2: Locating Shift Handle Bolts And Lever
      G06778564Courtesy of FORD MOTOR CO.
  5. Remove the 4 bolts and the lower shift lever.
    Fig 3: Locating Lower Gearshift Lever Bolts
    G06778565Courtesy of FORD MOTOR CO.
  6. Disconnect the reverse lamp switch electrical connector.
    Fig 4: Locating Reverse Lamp Switch Electrical Connector

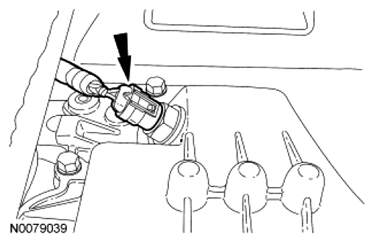

    G06778570Courtesy of FORD MOTOR CO.
  7. If the transmission is being disassembled, remove the drain plug and drain the transmission fluid.
  8. Remove the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
  9. Remove the driveshaft. For additional information, refer to DRIVESHAFT .
  10. Disconnect the wiring harness retainers from the transmission and crossmember and position the harness aside.
    Fig 5: Locating Wiring Harness Retainers
    G06778571Courtesy of FORD MOTOR CO.
    11. NOTE: Slide the heat shield back and rotate counterclockwise 45 degrees while pushing inward.
    Fig 6: Removing Clutch Slave Cylinder And Position

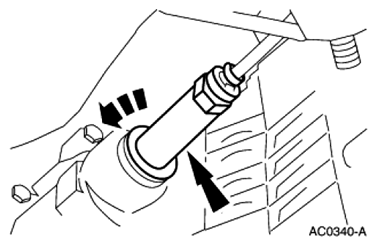

    G06778572Courtesy of FORD MOTOR CO.
  11. Remove the clutch slave cylinder and position aside.
  12. Disconnect the fuel tubes from the fuel tube clip on the transmission case and position aside.
    Fig 7: Locating Fuel Tube Clip
    G06778573Courtesy of FORD MOTOR CO.
  13. Using the High Lift Transmission Jack, support the transmission.
    • Securely strap the High Lift Transmission Jack to the transmission.
      Fig 8: Supporting Transmission Using High Lift Transmission Jack
      G06778574Courtesy of FORD MOTOR CO.
  14. Remove the 2 transmission mount nuts from the crossmember.
    Fig 9: Locating Transmission Mount Nuts
    G06778575Courtesy of FORD MOTOR CO.
  15. Loosen the top 2 RH crossmember bracket nuts.
    Fig 10: Locating RH Crossmember Bracket Nut

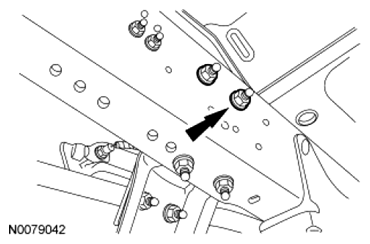

    G06778576Courtesy of FORD MOTOR CO.
  16. Remove the 4 lower RH crossmember nuts.
    Fig 11: Locating Lower RH Crossmember Nut

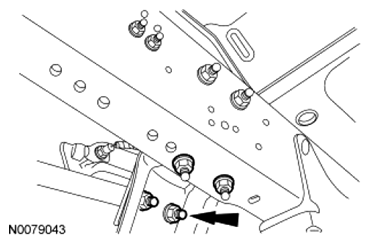

    G06778577Courtesy of FORD MOTOR CO.
  17. Remove the 3 LH crossmember bolts and remove the crossmember.
    Fig 12: Locating LH Crossmember Bolts
    G06778578Courtesy of FORD MOTOR CO.
  18. Remove 2 engine-to-transmission spacer plate bolts.
    Fig 13: Locating Engine-To-Transmission Spacer Plate Bolt
    G06778579Courtesy of FORD MOTOR CO.
  19. Remove the 7 transmission-to-engine bolts.
    Fig 14: Locating Transmission-To-Engine Bolts
    G06778580Courtesy of FORD MOTOR CO.
  20. Remove the transmission by moving the transmission rearward until the input shaft is clear of the clutch, then lower from the vehicle.
