Section 2751 (Manual Transmission - M6HD-W -- F250-F550 Super Duty): Installation: Transmission: Material

WARNING: This page is about a different car, the 2010 Ford F550 Super Duty and 2010 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION CHART

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V
Threadlock and Sealer TA-25	WSK-M2G351-A5

Using the High Lift Transmission Jack, raise and position the transmission to the engine and clutch.

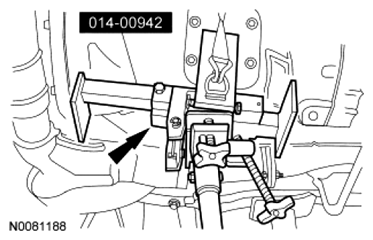

Fig 1: Supporting Transmission Using High Lift Transmission Jack
Courtesy of FORD MOTOR CO.
Install the 7 transmission-to-engine bolts.
- Tighten to 63 Nm (46 lb-ft).

  Fig 2: Locating Transmission-To-Engine Bolts
  Courtesy of FORD MOTOR CO.
Position the crossmember and install the 3 LH crossmember bolts.
- Tighten to 90 Nm (66 lb-ft).

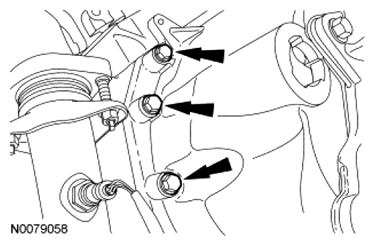

  Fig 3: Locating LH Crossmember Bolts
  Courtesy of FORD MOTOR CO.
Install the 4 RH crossmember nuts and tighten the upper 2 crossmember bracket nuts.
- Tighten to 70 Nm (52 lb-ft).

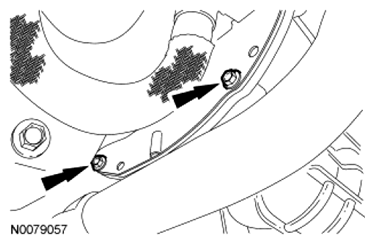

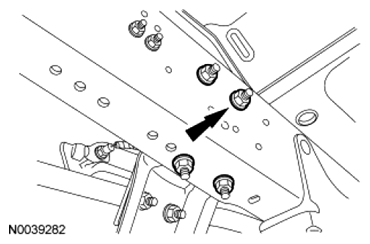

  Fig 4: Locating RH Crossmember Nut
  Courtesy of FORD MOTOR CO.
Install the 2 transmission mount nuts.
- Tighten to 81 Nm (60 lb-ft).

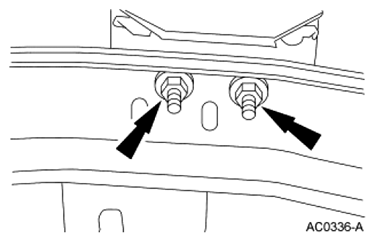

  Fig 5: Locating Transmission Mount Nuts
  Courtesy of FORD MOTOR CO.
Install the 2 engine-to-transmission spacer plate bolts.
- Tighten to 28 Nm (21 lb-ft).

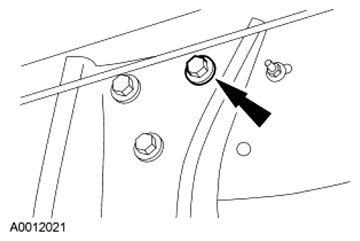

  Fig 6: Locating Engine-To-Transmission Spacer Plate Bolt
  Courtesy of FORD MOTOR CO.
Remove the transmission jack.
Position the clutch slave cylinder.
- Push in and rotate the clutch slave cylinder clockwise 45 degrees to the lock position.

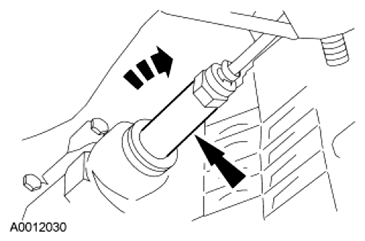

  Fig 7: Rotating Clutch Slave Cylinder Clockwise
  Courtesy of FORD MOTOR CO.
Install the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
Install the rear driveshaft. For additional information, refer to DRIVESHAFT .
Connect the reverse lamp switch electrical connector then attach the wiring harness retainers to the transmission and crossmember.

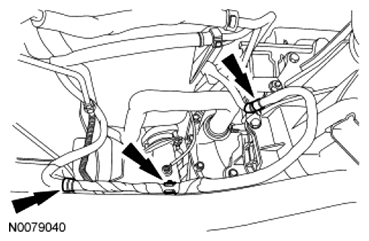

Fig 8: Locating Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Install the fuel tubes into the plastic clip on the transmission case.

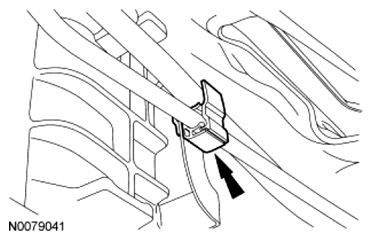

Fig 9: Locating Fuel Tube Clip
Courtesy of FORD MOTOR CO.

NOTE: Refill the transmission with clean, specified lubricant.

If drained, install the drain plug and refill the transmission.
- Tighten to 20 Nm (177 lb-in).

NOTE: When installing, a slight wiggle may be necessary to seat the shifter lever between the detents.

NOTE: Apply threadlock to the threads of the bolts.

Install the lower gear shift lever and the 4 bolts.
- Tighten to 11 Nm (97 lb-in).

  Fig 10: Locating Lower Gearshift Lever Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Apply threadlock to the threads of the bolts.

Slide the upper shifter boot assembly up the handle shift and install the shift handle and bolts.
- Tighten to 28 Nm (21 lb-ft).

  Fig 11: Locating Shift Handle Bolts And Lever
  Courtesy of FORD MOTOR CO.
Install the front tab of the upper and lower shifter boot assembly under the floor pan. Install the 2 rear shifter boot screws.

Fig 12: Locating Shift Lever Boot Screw
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
