Disassembly And Assembly Of Subassemblies: Mainshaft: Disassembly

WARNING: This page is about a different car, the 2010 Ford F550 Super Duty and 2010 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Use the yoke to support the mainshaft in the upright position.
    Fig 1: Locating Clutch Cone And Synchronizer Ring
    G06778612Courtesy of FORD MOTOR CO.
  1. Remove the clutch cone and the synchronizer ring.
  2. Remove the 2 thrust washers and the roller bearing between the thrust washers.
    Fig 2: Locating Thrust Washers And Roller Bearing
    G06778613Courtesy of FORD MOTOR CO.
  3. Remove the 3rd and 4th gear synchronizer assembly.
    Fig 3: Locating 3rd And 4th Gear Synchronizer Assembly
    G06778614Courtesy of FORD MOTOR CO.
  4. Remove the 3rd gear synchronizer ring.
    Fig 4: Locating 3rd Gear Synchronizer Ring
    G06778615Courtesy of FORD MOTOR CO.
  5. Remove the 3rd gear.
    Fig 5: Locating 3rd Gear
    G06778616Courtesy of FORD MOTOR CO.
  6. Remove the roller bearing.
    Fig 6: Locating Roller Bearing
    G06778617Courtesy of FORD MOTOR CO.
  7. Using the 2 or 3 Jaw Puller, remove the 3rd gear bushing and the 2nd gear.
    Fig 7: Removing 3rd Gear Bushing And 2nd Gear
    G06778618Courtesy of FORD MOTOR CO.
  8. NOTE: A ball bearing is between the thrust washer and the mainshaft. The ball bearings are not interchangeable.
    Fig 8: Locating Thrust Washer, Ball Bearing And Roller Bearings
    G06778619Courtesy of FORD MOTOR CO.
  9. Remove the thrust washer, ball bearing and roller bearings.
  10. Remove the 2nd gear synchronizer ring.
    Fig 9: Locating 2nd Gear Synchronizer Ring
    G06778620Courtesy of FORD MOTOR CO.
  11. Remove the snap ring retaining the 1st and 2nd synchronizer assembly.
    • Discard the snap ring.

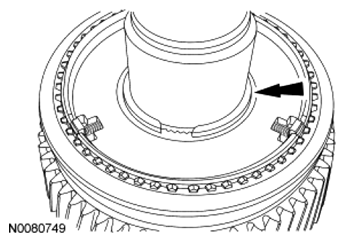

      Fig 10: Locating Snap Ring
      G06778621Courtesy of FORD MOTOR CO.
  12. Using the Bearing Puller and a suitable press, remove the 1st and 2nd gear synchronizer assembly and the 1st gear.
    Fig 11: Removing 1st And 2nd Gear Synchronizer Assembly And 1st Gear
    G06778622Courtesy of FORD MOTOR CO.
  13. Remove the 1st gear roller bearing.
    Fig 12: Locating 1st Gear Roller Bearing
    G06778623Courtesy of FORD MOTOR CO.
  14. Invert the mainshaft. Using the Bearing Puller and a suitable press, remove the 5th gear and roller bearing.
    Fig 13: Removing 5th Gear And Roller Bearing
    G06778624Courtesy of FORD MOTOR CO.
  15. NOTE: A ball bearing is between the thrust washer and the mainshaft. The ball bearings are not interchangeable.
    Fig 14: Locating Thrust Washer And Ball Bearing
    G06778625Courtesy of FORD MOTOR CO.
  16. Remove the thrust washer and the ball bearing.
  17. Remove the reverse gear and synchronizer assembly.
    Fig 15: Locating Reverse Gear And Synchronizer Assembly
    G06778626Courtesy of FORD MOTOR CO.
  18. Remove the reverse gear roller bearing.
    Fig 16: Locating Reverse Gear Roller Bearing
    G06778627Courtesy of FORD MOTOR CO.
  19. Remove the synchronizer ring.
    Fig 17: Locating Synchronizer Ring
    G06778628Courtesy of FORD MOTOR CO.
  20. Remove the snap ring retaining the clutch cone.
    • Discard the snap ring.
      Fig 18: Locating Clutch Cone Snap Ring
      G06778629Courtesy of FORD MOTOR CO.
  21. Remove the clutch cone.
    Fig 19: Locating Clutch Cone
    G06778630Courtesy of FORD MOTOR CO.
