Transmission Assembly - Housings
WARNING: This page is about a different car, the 2010 Ford F550 Super Duty and 2010 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

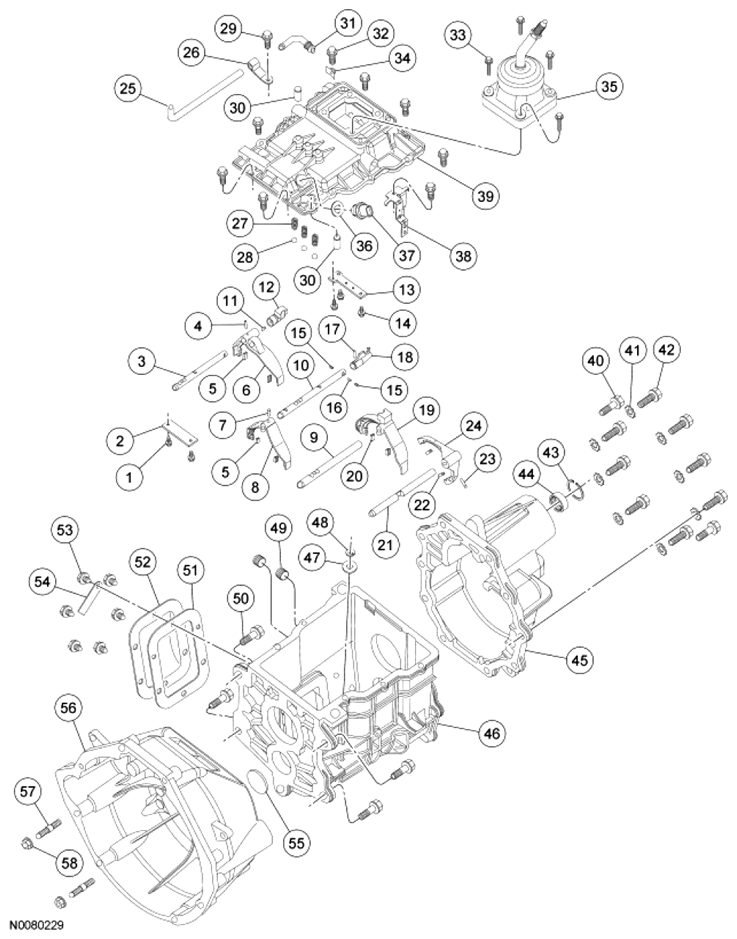

ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Front shift bar support bracket bolt (2 required) |
| 2 | Front shift bar support bracket |
| 3 | 1st/2nd shift rail |
| 4 | Roll pin |
| 5 | Shift fork inserts |
| 6 | Shift fork (1st and 2nd) |
| 7 | Roll pin |
| 8 | Shift fork (3rd and 4th) |
| 9 | 5th shift rail |
| 10 | 3rd/4th shift rail |
| 11 | Roll pin |
| 12 | 1st/2nd shift gate |
| 13 | Rear shift bar support bracket |
| 14 | Front shift bar support bracket bolt (3 required) |
| 15 | Interlock pin retainers |
| 16 | Interlock pin |
| 17 | Roll pin |
| 18 | 3rd/4th shift gate |
| 19 | Shift fork (5th and reverse) |
| 20 | Shift fork insert |
| 21 | 5th/reverse shift rail |
| 22 | Shift fork insert |
| 23 | Roll pin |
| 24 | Shift fork (5th) |
| 25 | Vent hose |
| 26 | Vent hose support bracket |
| 27 | Detent spring |
| 28 | Shift rail detent |
| 29 | Vent hose support bracket bolt |
| 30 | Dowel pins |
| 31 | Vent hose connector |
| 32 | Shift control housing bolt (10 required) |
| 33 | Shift lever (lower) bolt (4 required) |
| 34 | Retainer clip |
| 35 | Shift lever (lower) |
| 36 | Reverse lamp switch seal |
| 37 | Reverse lamp switch |
| 38 | Fuel tube retainer |
| 39 | Shift control housing |
| 40 | Extension housing bolt (2 required) |
| 41 | Lock washer (8 required) |
| 42 | Extension housing bolt (8 required) |
| 43 | Extension housing bearing snap ring |
| 44 | Extension housing bearing |
| 45 | Extension housing |
| 46 | Transmission main case |
| 47 | Magnet |
| 48 | Magnet retainer |
| 49 | Fill/drain plug |
| 50 | Main case-to-clutch housing bolt |
| 51 | Power Take-Off (PTO) cover seal |
| 52 | PTO cover |
| 53 | PTO cover bolt (6 required) |
| 54 | Identification tag |
| 55 | Main case front seal |
| 56 | Clutch housing |
| 57 | Main case-to-clutch housing stud (2 required) |
| 58 | Main case-to-clutch housing nut (2 required) |
