Transmission Insulator and Retainer: Removal

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
    2. NOTE: The transmission insulator and retainer studs may come out of the insulator while removing the nuts. Install new transmission insulator and retainer studs if the studs come out of the insulator.

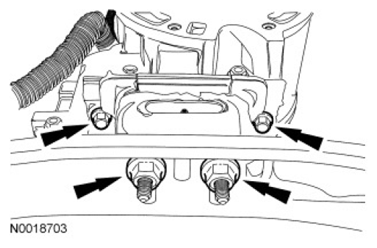

    Fig 1: Locating Transmission Insulator And Retainer Crossmember Nuts
    G06775768Courtesy of FORD MOTOR CO.
  2. Remove the transmission insulator and retainer crossmember nuts and the transmission insulator and retainer extension housing bolts.
  3. Raise the transmission upward, off the transmission insulator and remove the insulator.

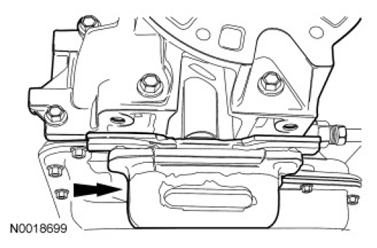

    Fig 2: Locating Transmission Insulator
    G06775755Courtesy of FORD MOTOR CO.
