Transmission Control Module (TCM)

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

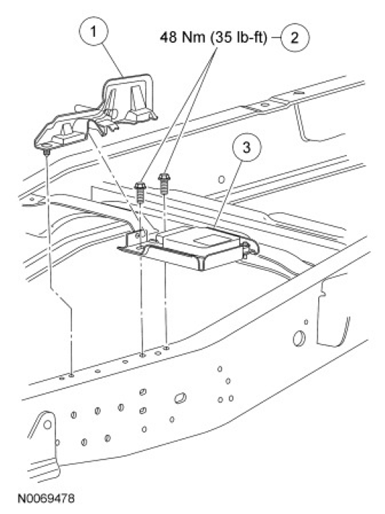

Fig 1: Transmission Control Module With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	5C036	Transmission Control Module (TCM) splash shield
2	W505270-S439	TCM bracket-to-frame bolts
3	12B565	TCM and bracket
