Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the Transmission Control Module (TCM) and bracket from the frame.
    1. Move the splash shield aside.
    2. Remove the TCM  bracket-to-frame bolts.

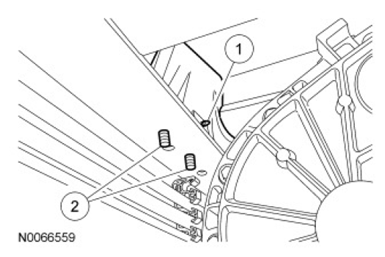

      Fig 1: Identifying TCM Bracket-To-Frame Bolts
      G06775872Courtesy of FORD MOTOR CO.
  4. Remove the TCM  from the bracket.
    1. Disconnect the TCM  electrical connector.
    2. Remove the TCM  -to-bracket bolts.

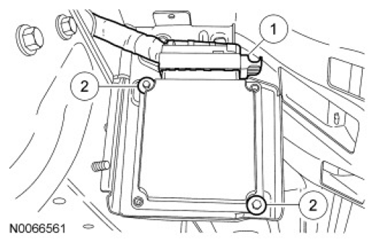

      Fig 2: Identifying TCM-To-Bracket Bolts
      G06775873Courtesy of FORD MOTOR CO.
