Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the TCM  to the bracket.
    1. Install the TCM  -to-bracket bolts.
      • Tighten to 8 Nm (71 lb-in).
    2. Connect the TCM  electrical connector.

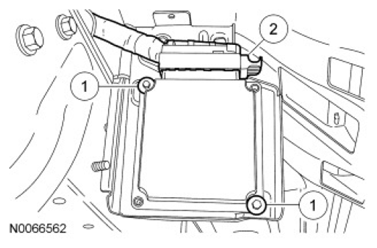

      Fig 1: Identifying TCM-To-Bracket Bolts
      G06775874Courtesy of FORD MOTOR CO.
  2. Install the TCM  and bracket onto the frame.
    1. Install the TCM  bracket-to-frame bolts.
      • Tighten to 48 Nm (35 lb-ft).
    2. Install the splash shield.

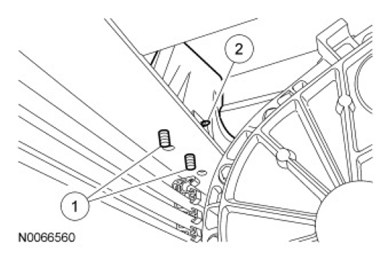

      Fig 2: Identifying TCM Bracket-To-Frame Bolts
      G06775875Courtesy of FORD MOTOR CO.
  3. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
