Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Installer, Shift Shaft Fluid Seal 307-002 (TOOL-77288) |
|
| Remover, Pilot Bearing 308-001 (T58L-101-B) |
|
| Roll Pin Set 211-S060 (T78P-3504-N) |

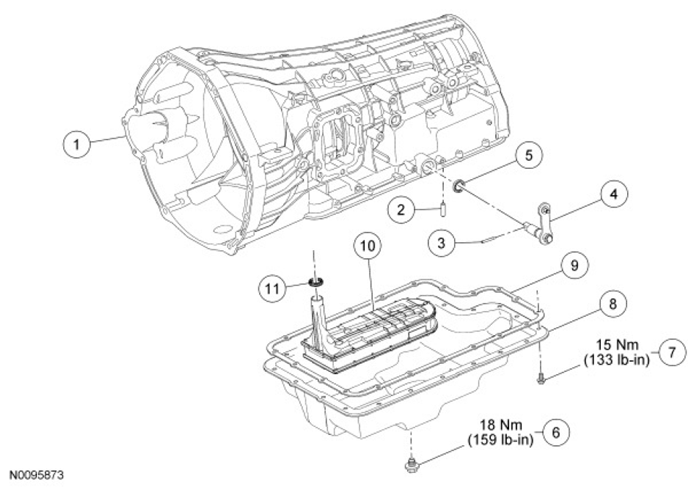

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transmission case |
| 2 | 7B210 | Manual control lever shaft retaining pin |
| 3 | 7G100 | Detent lever shaft retaining pin |
| 4 | 7A256 | Manual control lever assembly |
| 5 | 7B498 | Manual control lever seal |
| 6 | 6703 | Transmission fluid pan drain plug |
| 7 | N811266-S36 | Transmission fluid pan-to-case bolt (20 required) |
| 8 | 7A194 | Transmission fluid pan assembly |
| 9 | 7A191 | Transmission fluid pan gasket |
| 10 | 7A098 | Transmission fluid filter and seal assembly |
| 11 | 7Z302 | Transmission fluid filter seal |
