Transmission Control Module (TCM) - C1750
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

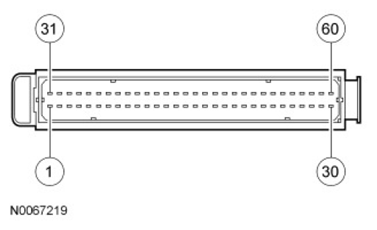

CONNECTOR PIN REFERENCE CHART
| Transmission Connector Pin Number | Description | Diesel TCM Connector Pin Number | Gas PCM Connector Pin Number |
|---|---|---|---|
| 1 | SSPCE | 4 | 12 |
| 2 | Not Used | - | - |
| 3 | SSPCB | 7 | 2 |
| 4 | SSPCD | 5 | 11 |
| 5 | SSPCC | 6 | 10 |
| 6 | Not Used | - | - |
| 7 | Ignition Voltage | 2 | 49 |
| 8 | TCC | 3 | 13 |
| 9 | Not Used | - | - |
| 10 | PCA | 22 | 23 |
| 11 | Not Used | - | - |
| 12 | SSPCA | 8 | 1 |
| 13 | Not Used | - | - |
| 14 | Not Used | - | - |
| 15 | TR Signal | 45 | 19 |
| 16 | Not Used | - | - |
| 17 | TR Ground | 49 | 50 |
| 18 | TFT Signal | 54 | 29 |
| 19 | Not Used | - | - |
| 20 | Ignition Voltage | 2 | 49 |
| 21 | TR Ignition Voltage | 20 | 39 |
| 22 | Ground | 46 | 41 |
| 23 | Not Used | - | - |
| 24 | Ignition Voltage | 2 | 49 |
| - | Battery Voltage | 60 | - |
