Ignition Coils, RH Valve Cover and Gasket
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

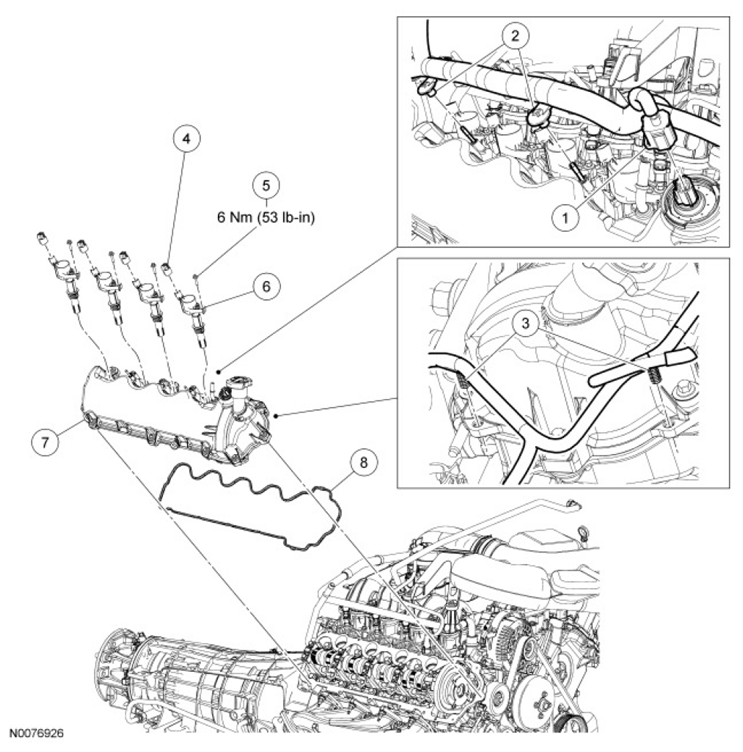

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12B637) |
| 2 | - | Engine wiring harness retainers (part of 12B637) |
| 3 | - | Engine wiring harness retainers (part of 12B637) |
| 4 | - | RH ignition coil electrical connector (4 required) (part of 12B637) |
| 5 | W711062 | RH ignition coil bolt (4 required) |
| 6 | 12A366 | RH ignition coil (4 required) |
| 7 | 6582 | RH valve cover |
| 8 | 6584 | RH valve cover gasket |
