Evaporative Emission (EVAP) Fuel Vapor Tube Quick Connect Fittings

WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

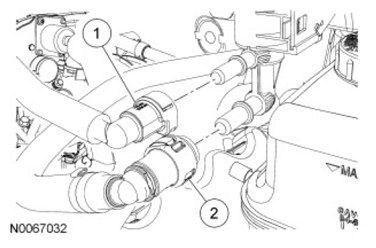

Fig 1: Identifying Evaporative Emission Fuel Vapor Tube Quick Connect Fittings
G06772567Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Evaporative Emission (EVAP) fuel vapor tube quick connect fitting
2 - EVAP  fuel vapor tube quick connect fitting
