Timing Drive Components: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the LH and RH camshafts.
- Lubricate the camshaft and camshaft journals with clean engine oil prior to installation.

NOTE: LH shown in illustration, RH similar.

Install the 5 LH and 5 RH camshaft bearing caps in their original locations.
- Lubricate the camshaft bearing caps with clean engine oil.
- Position the front camshaft bearing cap.
- Position the remaining camshaft bearing caps.
- Install the 20 bolts loosely.
- Tighten to 10 Nm (89 lb-in) in the sequence shown in illustration.

  Fig 1: Identifying Camshaft Bearing Cap Bolt Loosening Sequence
  Courtesy of FORD MOTOR CO.

NOTE: Damage to the camshaft phaser and sprocket assembly will occur if mishandled or used as a lifting or leveraging device.

NOTE: LH shown in illustration, RH similar.

Fig 2: Locating Camshaft Phaser And Sprocket Assembly Bolt

Courtesy of FORD MOTOR CO.

Position the camshaft phaser and sprockets and install 2 new camshaft phaser and sprocket bolts finger-tight.

NOTE: Damage to the camshaft phaser and sprocket assembly will occur if mishandled or used as a lifting or leveraging device.

NOTE: Only use hand tools to remove the camshaft phaser and sprocket assembly or damage may occur to the camshaft or camshaft phaser and sprocket.

NOTE: LH shown in illustration, RH similar.

Using the Cam Phaser Locking Tool, tighten the LH and RH camshaft phaser and sprocket bolts in 2 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

  Fig 3: Tightening LH Camshaft Phaser And Sprocket Assembly
  Courtesy of FORD MOTOR CO.
Position the crankshaft with the Crankshaft Holding Tool, then remove the tool.

Fig 4: Positioning Crankshaft
Courtesy of FORD MOTOR CO.

NOTE: Timing chain procedures must be followed exactly or damage to valves and pistons will result.

NOTE: Prior to installation, inspect the tensioner-sealing bead for seal integrity. If cracks, tears, separation from the tensioner body or permanent compression of the seal bead is observed, install a new tensioner or engine damage may occur.

Fig 5: Compressing Tensioner Plunger Using Vise

Courtesy of FORD MOTOR CO.

Compress the tensioner plunger, using a vise.
Install a retaining clip on the tensioner to hold the plunger in during installation.

Fig 6: Installing Retaining Clip On Tensioner
Courtesy of FORD MOTOR CO.
Remove the tensioner from the vise.
If the copper links are not visible, mark 2 links on one end and 1 link on the other end, and use as timing marks.

Fig 7: Locating Copper Link Timing Marks
Courtesy of FORD MOTOR CO.
Install the crankshaft sprocket, making sure the flange faces forward.

Fig 8: Installing Crankshaft Sprocket
Courtesy of FORD MOTOR CO.

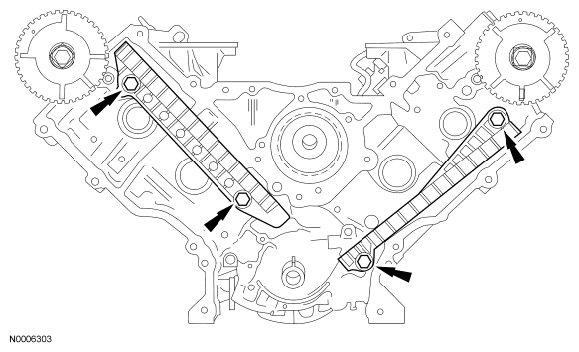

Position the LH and RH timing chain guides and install the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 9: Locating Timing Chain Guides
  Courtesy of FORD MOTOR CO.
Position the lower end of the LH (inner) timing chain on the crankshaft sprocket, aligning the timing mark on the outer flange of the crankshaft sprocket with the single copper (marked) link on the chain.

Fig 10: Locating Crankshaft Sprocket Timing Mark And Timing Chain Link
Courtesy of FORD MOTOR CO.

NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel.

Fig 11: Locating Timing Mark On Timing Chain

Courtesy of FORD MOTOR CO.

Position the timing chain on the camshaft phaser and sprocket with the timing mark positioned between the 2 copper (marked) chain links.

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).

  Fig 12: Locating LH Timing Chain Tensioner Bolts
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the LH timing chain tensioner.

Fig 13: Removing Retaining Clip From LH Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
Position the lower end of the RH (outer) timing chain on the crankshaft sprocket, aligning the timing mark on the sprocket with the single copper (marked) chain link.

Fig 14: Locating Sprocket Timing Mark And Chain Link
Courtesy of FORD MOTOR CO.

NOTE: The lower half of the timing chain must be positioned above the tensioner arm dowel.

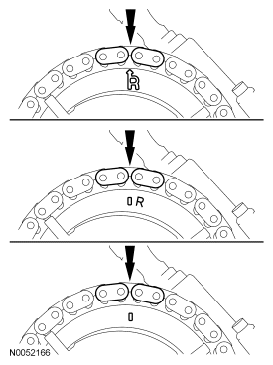

NOTE: The camshaft phaser and sprocket will be stamped with one of the illustrated timing marks for the RH camshaft.

Fig 15: Locating Upper Stabilizer Link Nut

Courtesy of FORD MOTOR CO.

Position the RH timing chain on the camshaft phaser and sprocket. Make sure the timing mark is positioned between the 2 copper (marked) chain links.
Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).

  Fig 16: Identifying RH Timing Chain Tensioner Bolts
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the RH timing chain tensioner.

Fig 17: Locating Retaining Clip From LH Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
As a post-check, verify correct alignment of all timing marks.

Fig 18: Locating Timing Chain Mark Location
Courtesy of FORD MOTOR CO.
Install the crankshaft sensor ring on the crankshaft.

Fig 19: Locating Crankshaft Sensor Ring
Courtesy of FORD MOTOR CO.

NOTE: If the components are to be reinstalled, they must be installed into their original locations. Failure to follow these instructions may result in engine damage.

NOTE: Do not allow the valve keepers to fall off of the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed. For additional information, refer to CYLINDER HEAD .

NOTE: It may be necessary to push the valve down while compressing the spring.

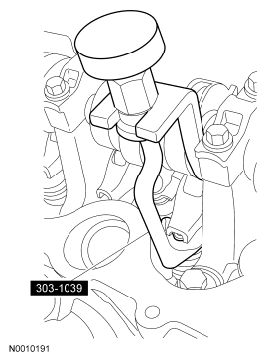

Using the Valve Spring Compressor, install all of the camshaft roller followers.
- Lubricate the camshaft roller followers with clean engine oil prior to installation.

  Fig 20: Installing Camshaft Roller Followers
  Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
