Evaporative Emission (EVAP) Tube, Fuel Supply Tube Spring Lock Coupling, Fuel Rail and Throttle Body (TB) Electrical Connectors
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

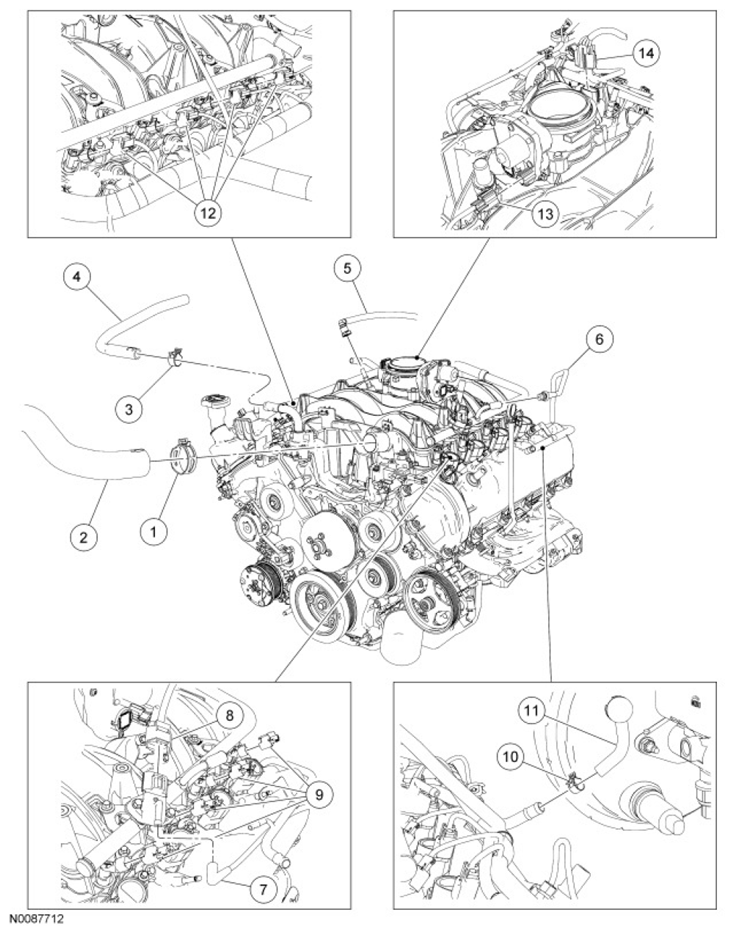

Fig 1: Identifying Evaporative Emission Tube, Fuel Supply Tube Spring Lock Coupling And Fuel Rail And Throttle Body Electrical Connectors
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705800 | Radiator hose clamp |
| 2 | 9F792 | Radiator hose |
| 3 | - | Heater coolant hose clamp |
| 4 | 9229 | Heater coolant hose |
| 5 | 6K824 | Evaporative Emission (EVAP) system tube |
| 6 | 9J338 | Fuel supply tube spring lock coupling |
| 7 | - | Fuel rail pressure and temperature sensor vacuum hose (part of 9D446) |
| 8 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 9 | - | LH fuel injector electrical connectors (part of 12B637) |
| 10 | - | Intake manifold vacuum tube-to-brake booster hose clamp (part of 9A474) |
| 11 | - | Intake manifold vacuum tube-to-brake booster hose (part of 9A474) |
| 12 | - | RH fuel injector electrical connectors (part of 12B637) |
| 13 | - | Electronic Throttle Control (ETC) electrical connector (part of 12B637) |
| 14 | - | Throttle Position (TP) sensor electrical connector (part of 12B637) |
