Air Cleaner (ACL) Outlet Pipe-to-Throttle Body (TB) Adapter, PCV Tube and Crankcase Vent Tube
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

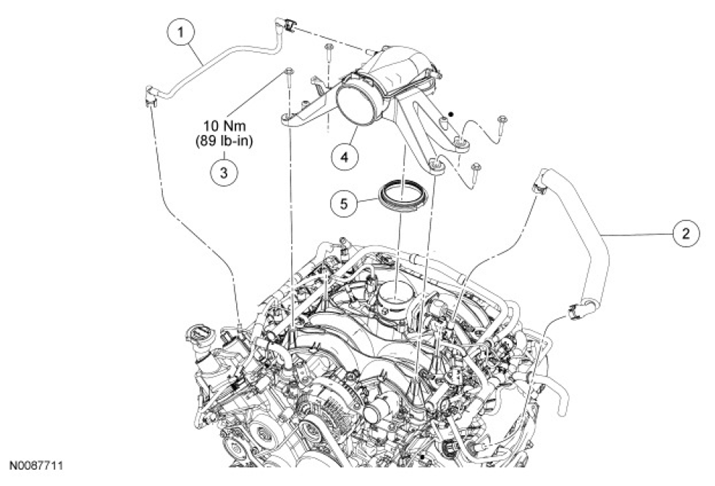

Fig 1: Air Cleaner Outlet Pipe-To-Throttle Body Adapter, PCV Tube And Crankcase Vent Tube With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K824 | Crankcase ventilation tube |
| 2 | 6K817 | PCV tube |
| 3 | W713555 | Air Cleaner (ACL) outlet pipe-to-Throttle Body (TB) adapter bolt (4 required) |
| 4 | 9A589 | ACL outlet pipe-to- TB adapter |
| 5 | 9B694 | ACL outlet pipe-to- TB adapter seal |
