Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

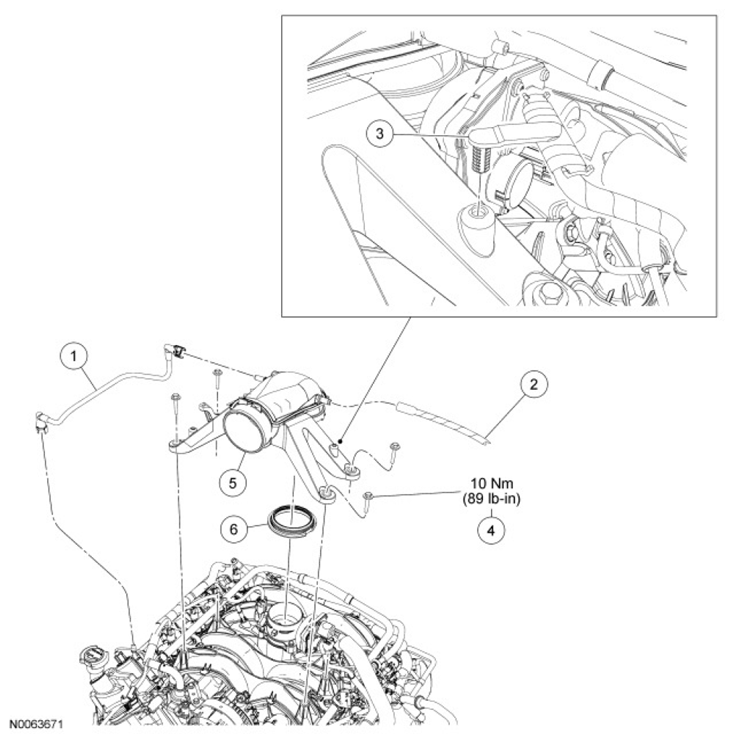

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6758 | Crankcase ventilation tube |
| 2 | - | Vacuum hose (part of 9D446) |
| 3 | - | Engine wiring harness retainer (part of 12B637) |
| 4 | W713555 | Air Cleaner (ACL) outlet pipe-to-Throttle Body (TB) adapter bolt (4 required) |
| 5 | 9A589 | ACL outlet pipe-to- TB adapter |
| 6 | 9B694 | ACL outlet pipe-to- TB adapter seal (part of 9A589) |

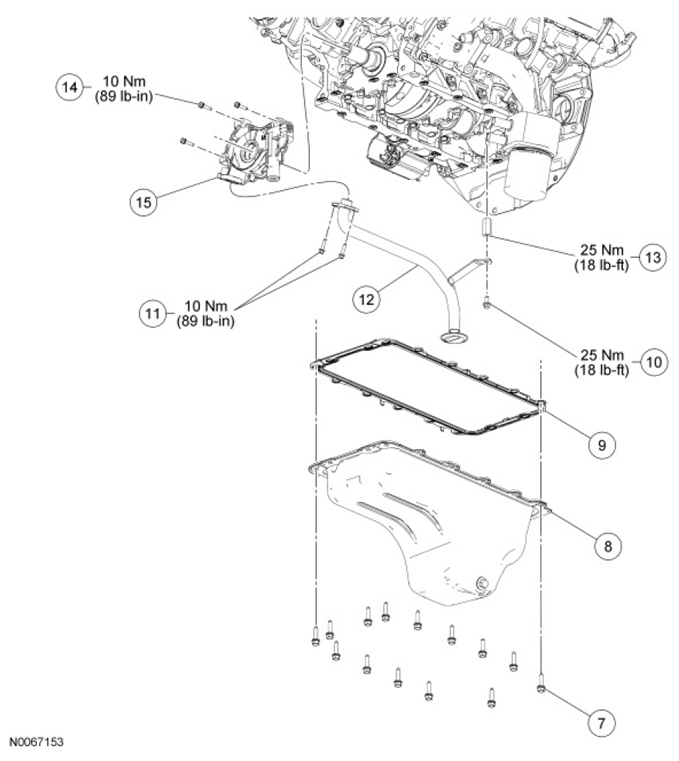

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 7 | W701605 | Oil pan bolt (16 required) |
| 8 | 6675 | Oil pan |
| 9 | 6710 | Oil pan gasket |
| 10 | N605904 | Oil pump screen and pickup tube-to-spacer bolt |
| 11 | N806155 | Oil pump screen and pickup tube-to-oil pump bolts (2 required) |
| 12 | 6622 | Oil pump screen and pickup tube |
| 13 | N806180 | Oil pump screen and pickup tube spacer |
| 14 | N806183 | Oil pump bolt (3 required) |
| 15 | 6621 | Oil pump |
- For additional information, refer to the appropriate procedure(s).
