Intake Manifold Assembly: Material
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

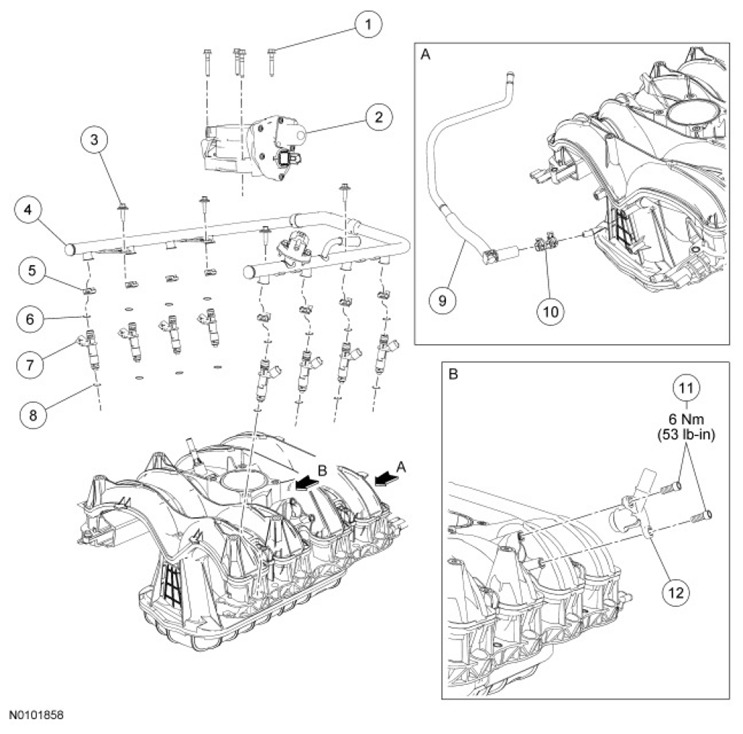

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W503282 | Throttle Body (TB) bolt (4 required) |
| 2 | 9F991 | TB assembly |
| 3 | W708650 | Fuel rail bolt (4 required) |
| 4 | 9F792 | Fuel rail |
| 5 | 9C995 | Fuel injector-to-fuel rail locking clip (8 required) |
| 6 | - | Fuel injector-to-fuel rail O-ring seal (8 required) |
| 7 | 9F593 | Fuel injector (8 required) |
| 8 | - | Fuel injector-to-intake manifold O-ring seal (8 required) |
| 9 | 9D446 | Intake manifold vacuum tube assembly |
| 10 | - | Intake manifold vacuum tube assembly clamp (part of 9D446) |
| 11 | W500204 | PCV fitting bolts (2 required) |
| 12 | 9F624 | PCV fitting |
