Engine Assembly
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

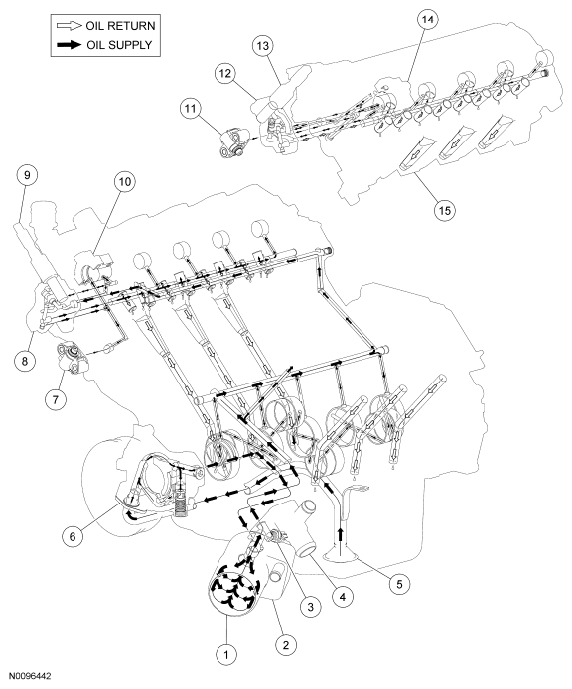

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6714 | Oil filter |
| 2 | 6A642 | Oil cooler (if equipped) |
| 3 | 9278 | Engine Oil Pressure (EOP) switch |
| 4 | 6884 | Oil filter adapter |
| 5 | 6622 | Oil pump screen and pickup tube |
| 6 | 6621 | Oil pump |
| 7 | 6L266A | Timing chain tensioner - RH |
| 8 | 6C260 | Variable Camshaft Timing (VCT) housing - RH |
| 9 | 6M280 | VCT oil control solenoid assembly - RH |
| 10 | 6B284 | Front camshaft bearing cap - RH |
| 11 | 6L266B | Timing chain tensioner - LH |
| 12 | 6C261 | VCT housing - LH |
| 13 | 6M280 | VCT oil control solenoid assembly - LH |
| 14 | 6B284 | Front camshaft bearing cap - LH |
| 15 | 6050 | Cylinder head - LH |
