Engine - Front End

WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

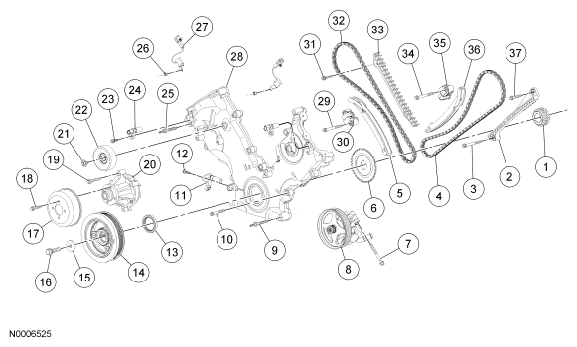

Fig 1: Exploded View Of Engine Components (Front End)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	6306	Crankshaft sprocket
2	6B274	Timing chain guide - LH
3	N606527	Timing chain guide lower bolt - LH
4	6268	Timing chain - LH
5	6K255	Tensioner arm - RH
6	12A227	Ignition pulse wheel
7	W500315	Power steering pump bolt (2 required)
8	3A696	Power steering pump assembly
9	N808529	Engine front cover stud bolt (2 required)
10	N806177	Engine front cover bolt (8 required)
11	6C315	Crankshaft Position (CKP) sensor
12	N806155	CKP sensor bolt
13	6700	Crankshaft front seal
14	6316	Crankshaft pulley
15	N806165	Crankshaft pulley washer
16	W701512	Crankshaft pulley bolt
17	8A528	Coolant pump pulley
18	N806282	Coolant pump pulley bolt (4 required)
19	N808794	Coolant pump bolt (4 required)
20	8501	Coolant pump
21	N808102	Accessory drive belt idler pulley bolt
22	12A216	Accessory drive belt idler pulley
23	N806155	Camshaft Position (CMP) sensor bolt (2 required)
24	6B288	CMP sensor (2 required)
25	W709573	Engine front cover stud bolt (5 required)
26	N804758	Radio ignition interference capacitor nut (2 required)
27	18801	Radio ignition interference capacitor (2 required)
28	6C086	Engine front cover
29	N606543	Timing chain tensioner bolt - RH (2 required)
30	6L266	Timing chain tensioner - RH
31	W503282	Timing chain guide bolt - RH (2 required)
32	6268	Timing chain - RH
33	6M256	Timing chain guide - RH
34	N606543	Timing chain tensioner bolt - LH (2 required)
35	6M269	Timing chain tensioner - LH
36	6M274	Tensioner arm - LH
37	N605892	Timing chain guide bolt (2 required)
