Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Steering Arm Remover | 211-003 (T64P-3590-F) | |
| C-Frame and Screw | 211-023 (T74P-3044-A1) | |
| Separator, Ball Joint | 204-592 | |
| Installer/Remover, Drive Pinion Oil Seal | 205-440 | |
| Installer, Wheel Knuckle Seal (F250/350) | 205-830 | |
| Installer, Wheel Knuckle Seal (F450/550) | 205-831 |
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

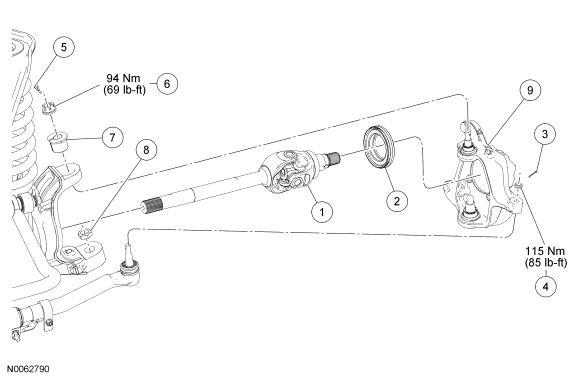

| Item | Part Number | Description |
|---|---|---|
| 1 | 3219 LH/ 3220 RH | Axle shaft |
| 2 | 3254 | Axle shaft main seal |
| 3 | W525287 | Cotter pin |
| 4 | W711373 | Tie-rod end nut |
| 5 | W525287 | Cotter pin |
| 6 | 3A049 | Upper ball joint nut |
| 7 | 3B404 | Camber adjustment sleeve |
| 8 | 3A050 | Lower ball joint nut |
| 9 | 3131 LH/ 3130 RH | Wheel knuckle |
