Wheel Bearing And Wheel Hub: Notes

WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	73III Automotive Meter	105-R0057 or equivalent
Courtesy of FORD MOTOR CO.	Vacuum Pump Kit	416-D002 (D95L-7559-A) or equivalent

Material

Item	Specification
High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A	ESA-M1C198-A

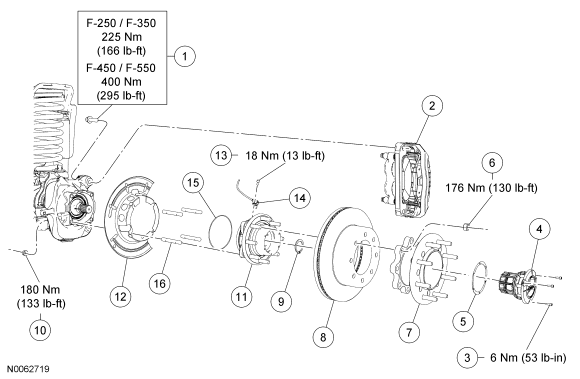

Fig 1: Exploded View Of Wheel Bearing & Wheel Hub With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709789	Brake caliper anchor plate bolt (2 required)
2	2B121 LH/ 2B210 RH	Brake caliper
3	W709526	Hub lock screw
4	3B396	Hub lock
5	1K106	Hub lock gasket
6	W520506	Wheel extension nut (8 required) (part of 1A104)
7	1A104	Wheel extension
8	1125	Brake disc
9	1B093	Axle shaft snap ring
10	1107	Wheel bearing and wheel hub nut (4 required) (part of 2B663)
11	2B663	Wheel bearing and wheel hub
12	2K005	Brake disc shield
13	-	Wheel speed sensor bolt
14	2C204	Wheel speed sensor
15	4A322	Wheel bearing and wheel hub O-ring
16	1120	Wheel bearing and wheel hub stud (part of 2B663)
