Stabilizer Bar: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

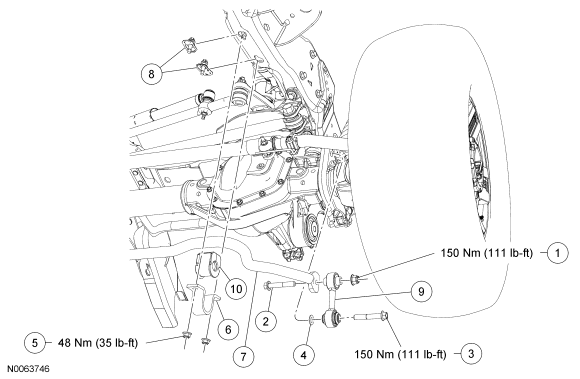

| Item | Part Number | Description |
|---|---|---|
| 1 | W707243 | Stabilizer bar link upper nut (2 required) |
| 2 | W709373 | Stabilizer bar link upper bolt (2 required) |
| 3 | W709373 | Stabilizer bar link lower bolt (2 required) |
| 4 | W711358 | Washer (2 required) |
| 5 | W520113 | Stabilizer bar bracket nut (4 required) |
| 6 | 3B353 | Stabilizer bar bracket (2 required) |
| 7 | 5494 | Stabilizer bar |
| 8 | W712045 | Stabilizer bar bracket bolt and retainer (4 required) |
| 9 | 3B438 | Stabilizer bar link (2 required) |
| 10 | 5484 | Stabilizer bar bushing (2 required) |
