Brake Booster - Vacuum: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

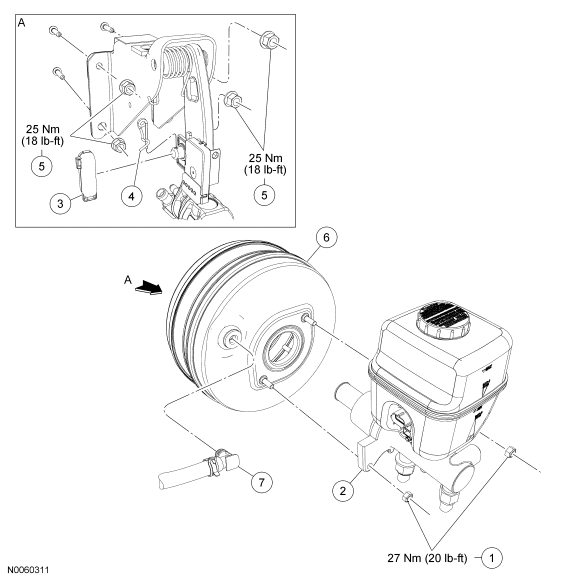

| Item |
Part Number |
Description |
| 1 |
382802 |
Brake master cylinder nuts (2 required) |
| 2 |
2140 |
Brake master cylinder |
| 3 |
- |
Brake pedal cotter pin cover |
| 4 |
380699 |
Brake pedal cotter pin |
| 5 |
W520112 |
Brake booster-to-pedal bracket nuts (4 required) |
| 6 |
2005 |
Vacuum brake booster |
| 7 |
- |
Brake booster vacuum hose |
