Brake Booster - Hydro-Boost®: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

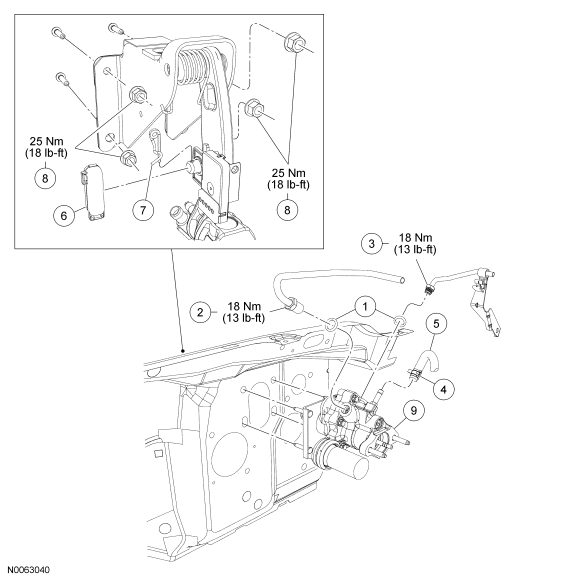

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Teflon® O-rings (2 required) |
| 2 | - | Power steering jumper line fitting (part of 3N999) |
| 3 | - | Power steering jumper line fitting (part of 3N999) |
| 4 | - | Spring clamp |
| 5 | - | Power steering fluid return hose |
| 6 | 2475 | Brake pedal cotter pin cover |
| 7 | 380699 | Brake pedal cotter pin |
| 8 | W520112 | Brake booster-to-pedal bracket nuts (4 required) |
| 9 | 2005 | Hydro-Boost® brake booster |
