Stabilizer Bar And Link - F250, F350: Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

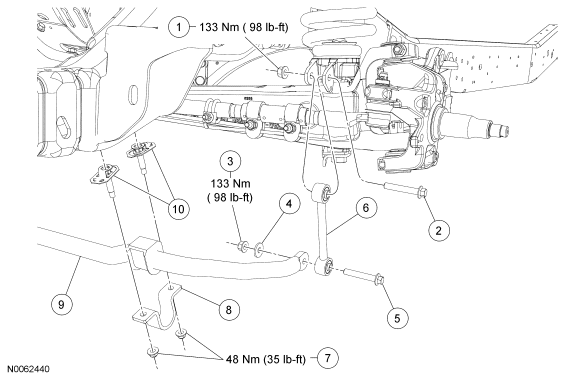

| Item | Part Number | Description |
|---|---|---|
| 1 | W520114 | Stabilizer bar link upper nut (2 required) |
| 2 | W500546 | Stabilizer bar link upper bolt (2 required) |
| 3 | W520114 | Stabilizer bar link lower nut (2 required) |
| 4 | N800916 | Washer (2 required) |
| 5 | W500546 | Stabilizer bar link lower bolt (2 required) |
| 6 | 3C140 | Stabilizer bar link (2 required) |
| 7 | W520113 | Stabilizer bar bracket nuts (4 required) |
| 8 | 3B353 | Stabilizer bar bracket |
| 9 | 5494 | Stabilizer bar |
| 10 | W712045 | Stabilizer bar bracket bolts and retainers (4 required) |
