Mode Select Switch (MSS): Notes

WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

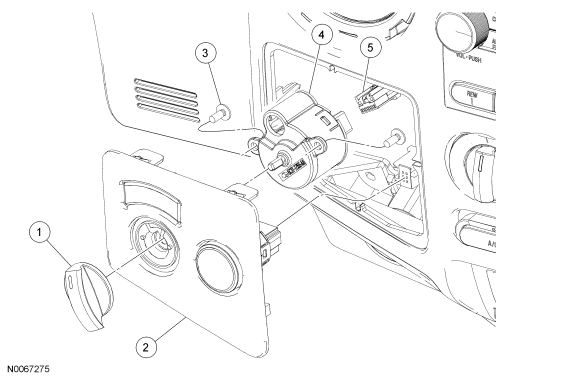

Fig 1: Exploded View Of Mode Select Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11666	Mode select switch (MSS) knob
2	047A04	Bezel
3	-	MSS
4	72155	Screws
5	-	Electrical connector-to-MSS
