Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230MFB

Model 243, 247

with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove roller sunblind motor of panoramic sliding sunroof.		AR77.21-P-0490MFB
2	Remove the front roller sunblind of panoramic sliding sunroof.		AR77.21-P-0200MFB

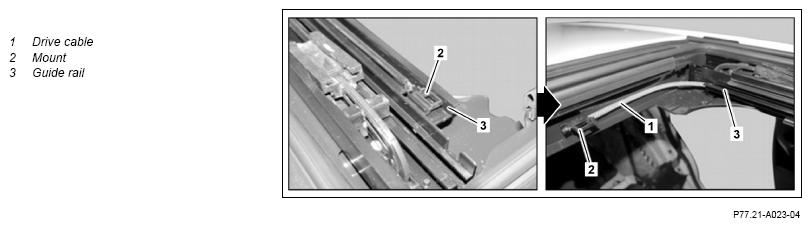

3	Push out the mount (2) of the left/right drive cable (1) to the rear out of the guide rail (3).	Long wedge	Fig 1
4	Pull out the drive cable (1) to the rear by hand out of the guide rail (3).	Guide drive cable (1) through guide rail (3) up to end stop. Then fully install drive cable (1) in front area.
5	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
