Integral Carrier Replacement - Ar62.30-P-0010MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3/6

Model 177.0/1/9

Model 247

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury due to fan starting unexpectedly	Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove all detachable parts in repair area.
2	Secure vehicle on vehicle lift.		AR00.60-P-0100-01A

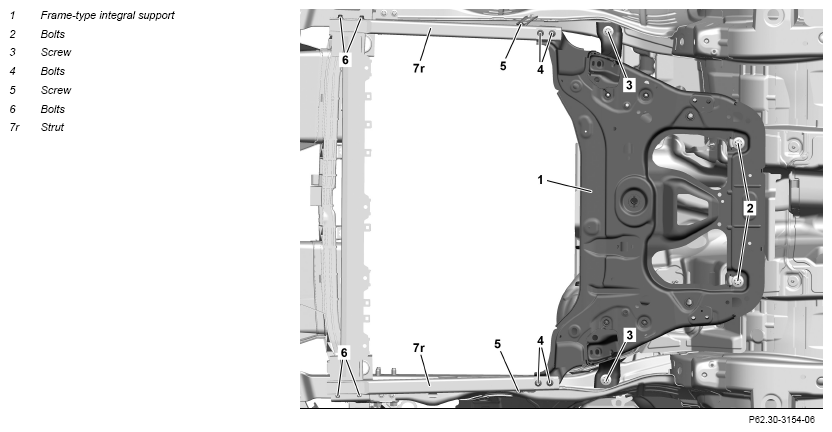

3	Remove screws (4, 5, 6).	Bolt, assembly carrier at bottom to mounting support	*BA62.30-P-1008-02O
		Bolt, connecting carrier to front axle carrier/radiator support	*BA62.30-P-1003-02O
4	Remove struts (7r).
5	Support integral carrier (1) using lifting platform.
	000 588 25 62 00 Lift table		WS01.00-P-0264A
6	Remove screws (2, 3).
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process	: Replace screw/bolts. First position all screws (2, 3) then tighten.	AH00.00-P-0020-01A
		Bolt, front-axle carrier to body	*BA33.10-P-1001-01R
7	Lower integral carrier (1) using lifting platform.
	Check
8	Check integral carrier (1) for damage.
	000 588 50 23 00 Body straightening system	Observe set-up plans provided. Replace if necessary.	WS60.00-P-0439K
9	Install in the reverse order.
10	Apply wax at connections to body.	Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A

Front axle carrier

Number	Designation				Model 118, 177, 247
BA33.10-P-1001-01R	Bolt, front-axle carrier to body	M12		Nm	100
		M14	Stage 1	Nm	200
			Stage 2 = loosen screws	∠°	≈180
			Stage 3	Nm	200

Frond end with front reinforcement

Number	Designation			Model 118	Model 177
BA62.30-P-1003-02O	Bolt, connecting carrier to front axle carrier/radiator support	M8	Nm	16	16

Frond end with front reinforcement

Number	Designation			Model 247
BA62.30-P-1003-02O	Bolt, connecting carrier to front axle carrier/radiator support	M8	Nm	16

Frond end with front reinforcement

Number	Designation			Model 118	Model 177
BA62.30-P-1008-02O	Bolt, assembly carrier at bottom to mounting support	M6	Nm	8	8

Frond end with front reinforcement

Number	Designation			Model 247
BA62.30-P-1008-02O	Bolt, assembly carrier at bottom to mounting support	M6	Nm	8

Repair materials

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation (free of solvents), 1 liter	A 000 986 72 70 10
