Front Longitudinal Member Section Preparation - Ar62.20-P-1260-05MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Model 177.0/1/9
Model 247.0
MODIFICATION NOTES
| 07.01.2020 | Method adapted. |
The following operation steps are shown on the left side of the vehicle on model 177 and must be similarly performed on the right side of the vehicle in the event of damage.
The superordinate service document as well as the safety information in the service document must be observed.

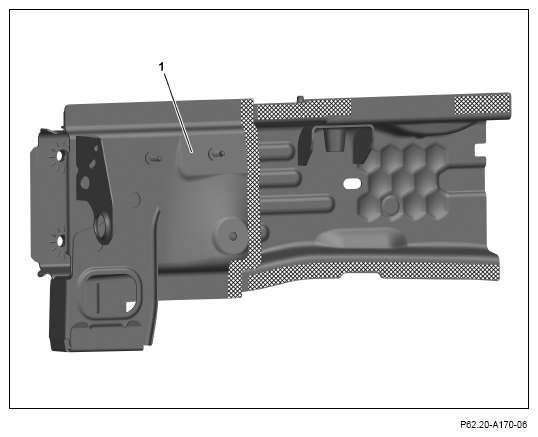

- Grind mating surfaces on longitudinal member front section (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Coat insides of spot weld flanges with zinc dust paint.
