Reversing Gear - Oil Change - AP28.80-D-2802TS

Model 907 with body 613.734/738/834/838

with code ZJ8 (Configuration Mercedes-Benz Minibus (MBM))

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
	Draining
1	Lift vehicle with lifting platform.	The vehicle must be horizontal. Otherwise, the redirecting transmission will not be filled correctly. An incorrect oil filling quantity can lead to a leakage and material damage. Only drain transmission oil when warm.	AR00.60-D-1000-04TS

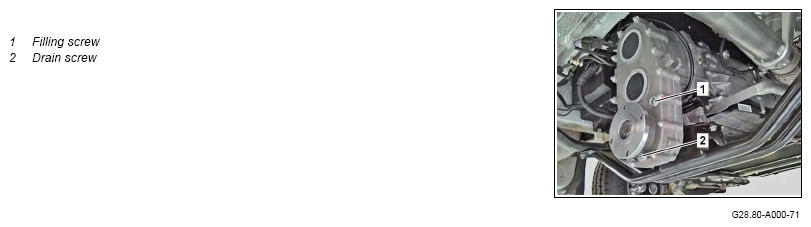

2	Clean area around the filler screw (1) and drain screw (2).
3	Remove filling screw (1).
4	Position suitable receptacle under the drain screw (2).
5	Unscrew drain screw (2) and completely drain off transmission oil.
6	Replace sealing ring on oil drain screw (2).	Pay attention to correct seat of sealing ring.
7	Screw in and tighten drain screw (2).	Filling screw to housing	*BA28.80-N-1002-02TS
	Pour in
8	Pour in transmission oil until it reaches the lower edge of the filler opening.	Reversing gear	*BF28.80-N-1001-01TS
9	Screw in and tighten filling screw (1).	Drain screw at housing	*BA28.80-N-1001-02TS
10	Lower vehicle with vehicle lift.
11	Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).
