Floor Heaters - Clean Heat EXCHANGERS - AP83.20-D-8333TS
Model 907 with body 613.734/738/834/838 with code ZJ8 (Configuration Mercedes-Benz Minibus (MBM))

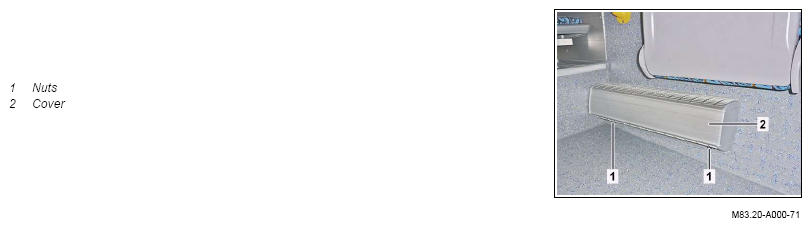

Example of heat exchanger in passenger compartment (depending on the version, 2 heat exchangers may be installed)
| Clean | ||
| 1 | Unscrew nuts (1). | |
| 2 | Remove cover (2). | |
| 3 | Clean upper side of heat exchanger. | |
| 4 | Install cover (2). | |
| 5 | Tighten nuts (1) securely. |
