Check Lift Function - AP86.20-D-8653TS

Model 907 with body 613.701/704/801/804

with code ZJ8 (Configuration Mercedes-Benz Minibus (MBM))

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Check
1	Park vehicle on level surface and apply parking brake.	On-board electrical system voltage of at least 12 V.

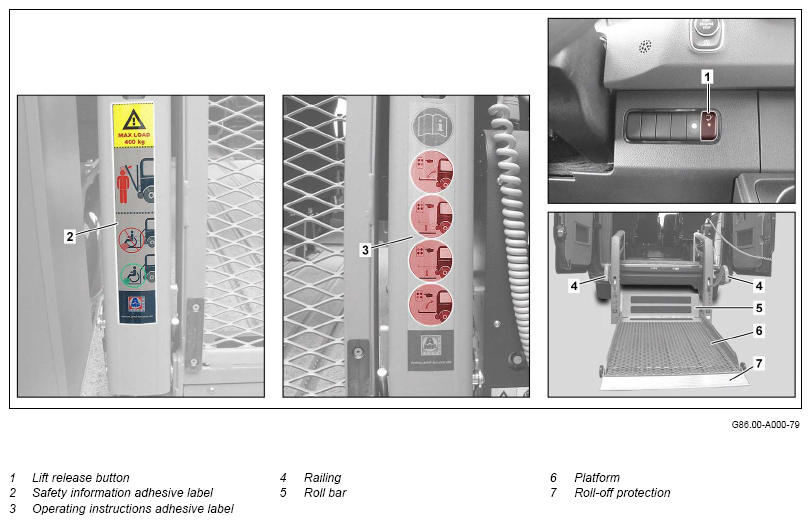

2	Release lift using pushbutton switch (1) at driver cockpit.
3	Open rear-end doors.
4	Check safety information adhesive label (2) for legibility and completeness.
5	Check operating instructions adhesive label (3) for legibility and completeness.	The adhesive labels (2,3) can also be attached at other points (depending on the lift make).
6	Lower platform (6) to floor.	Operation of the lift is described in the additional operator's manual for minibuses.
7	Check whether the railings (4) are positioned horizontally and the roll-off protection (7) is resting flat on the floor.	If problems exist, ↓ determine cause and correct. After obtaining special order.
8	Check that hydraulic pump, hydraulic hoses and hydraulic cylinder are in good condition and are not leaking.	If problems exist, ↓ determine cause and correct. After obtaining special order.
9	Raise platform (6) up to vehicle floor.	The roll-off protection (7) must fold up before the platform (6) is lifted. The roll bar (5) must not lower until the platform (6) is level with the vehicle floor.
10	Fold in platform (6) and close rear-end doors.
11	Lock lift with pushbutton switch (1) at driver cockpit.
