Remove/Install Speaker On Side Of Instrument Panel - Ar82.62-D-1102TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove left or right speaker cover from instrument panel | AR68.10-D-0002TS | |

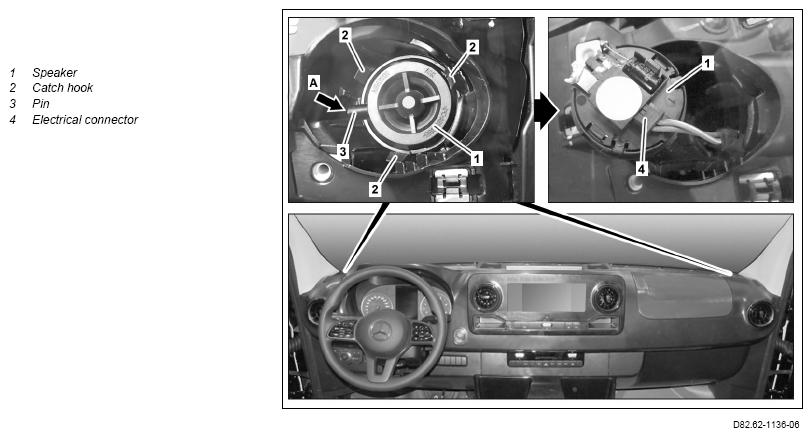

| 2 | Release speaker (1) at catch hooks (2) and pull upwards out of instrument panel until electrical connector (4) is accessible | ||
| Fig 1 | |||
| 3 | Disconnect electrical connector (4) and remove speaker (1) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Run function test on speaker (1) |
